Quad Alphanumeric Display - Red 0.54" Digits w/ I2C Backpack

Parts › Displays & LEDs › LED Matrix & Segment

ADA1911 · Adafruit

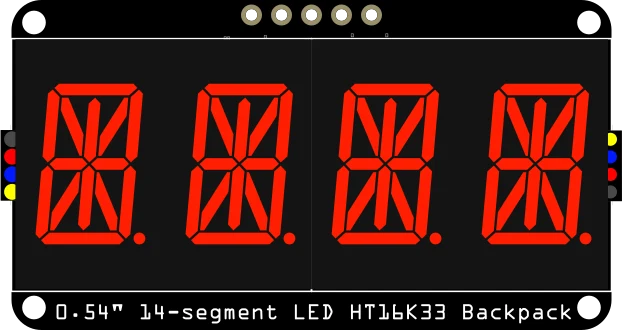

Quad Alphanumeric Display - Red 0.54" Digits w/ I2C Backpack photo
Quad Alphanumeric Display - Red 0.54" Digits w/ I2C Backpack illustration

Adafruit product #1911. Interfaces: I2C.

Part numberADA1911
ManufacturerAdafruit
CategoryDisplays & LEDs › LED Matrix & Segment
Pins5

Quad Alphanumeric Display - Red 0.54" Digits w/ I2C Backpack pinout

PinNameTypeDescription
1V+power
2VDDIObidirectional
3GNDground
4SDAbidirectional
5SCLbidirectional

Schematic symbol and footprint

12345
Footprint: Adafruit 0.54" Quad Alphanumeric Backpack (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
