Small 1.2" 8x8 Ultra Bright White LED Matrix + Backpack

Parts › Displays & LEDs › LED Matrix & Segment

ADA1614 · Adafruit

Small 1.2" 8x8 Ultra Bright White LED Matrix + Backpack photo

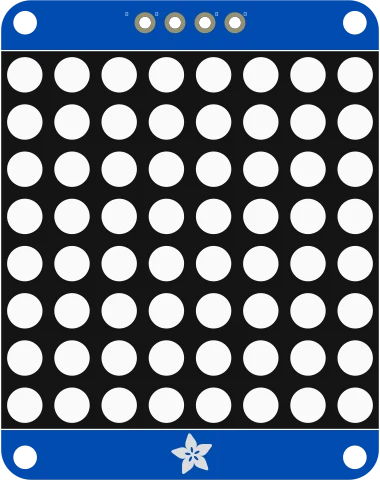

Small 1.2" 8x8 Ultra Bright White LED Matrix + Backpack illustration

Adafruit product #1614.

Part numberADA1614
ManufacturerAdafruit
CategoryDisplays & LEDs › LED Matrix & Segment
Pins4

Small 1.2" 8x8 Ultra Bright White LED Matrix + Backpack pinout

PinNameTypeDescription
1SCLbidirectional
2SDAbidirectional
3GNDground
4VDDpower

Schematic symbol and footprint

1234
Footprint: 1.2 Inch 8x8 LED Matrix Backpack (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.

Datasheet
