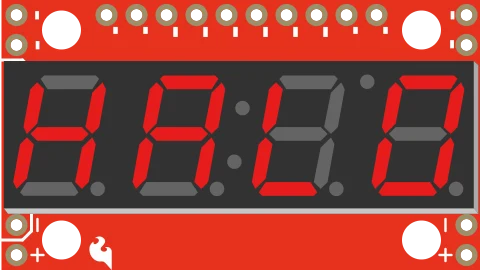

COM-11441 · SparkFunActive
(SparkFun COM-11441)
| Part number | COM-11441 |
|---|---|
| Manufacturer | SparkFun |
| Category | Displays & LEDs › LED Matrix & Segment |
| Pins | 23 |
SparkFun 7-Segment Serial Display - Red pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | SDA | bidirectional | |
| 2 | RX | bidirectional | |
| 3 | !SS | bidirectional | |
| 4 | MOSI | bidirectional | |
| 5 | RESET | bidirectional | |
| 6 | SCK | bidirectional | |
| 7 | MISO | bidirectional | |
| 8 | VCC | power | |
| 9 | GND | ground | |
| 10 | ADC6 | bidirectional | |
| 11 | ADC7 | bidirectional | |
| 12 | SDA | bidirectional | |
| 13 | SCL | bidirectional | |
| 14 | SCL | bidirectional | |
| 15 | 5 | bidirectional | |
| 16 | TX | bidirectional | |
| 17 | RX | bidirectional | |
| 18 | VCC | power | |
| 19 | GND | ground | |
| 20 | GND | ground | |
| 21 | GND | ground | |
| 22 | VCC | power | |
| 23 | VCC | power |
Schematic symbol and footprint
Footprint: SparkFun 7-Segment Serial Display-Red (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
