SparkFun RGB and Gesture Sensor - APDS-9960

Parts › Sensors › Light & Colour

SEN-12787 · SparkFun

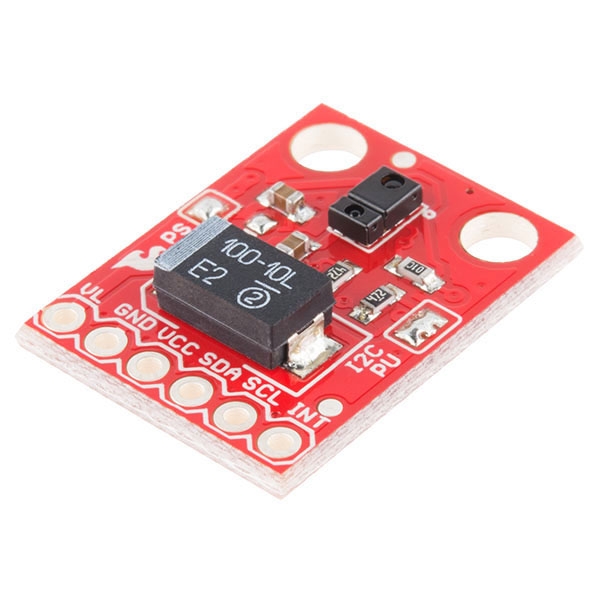

SparkFun RGB and Gesture Sensor - APDS-9960 photo
SparkFun RGB and Gesture Sensor - APDS-9960 illustration

(SparkFun SEN-12787)

Part numberSEN-12787
ManufacturerSparkFun
CategorySensors › Light & Colour
Pins6

SparkFun RGB and Gesture Sensor - APDS-9960 pinout

PinNameTypeDescription
1VLbidirectional
2GNDground
3VCCpower
4SDAbidirectional
5SCLbidirectional
6INTbidirectional

Schematic symbol and footprint

123456
Footprint: APDS-9960 RGB and Gesture Sensor (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.

Datasheet
