SEN-13676 · SparkFunActive
(SparkFun SEN-13676)
| Part number | SEN-13676 |
|---|---|
| Manufacturer | SparkFun |
| Category | Sensors › Pressure |
| Pins | 10 |
| Voltage (max) | 3.3 V |

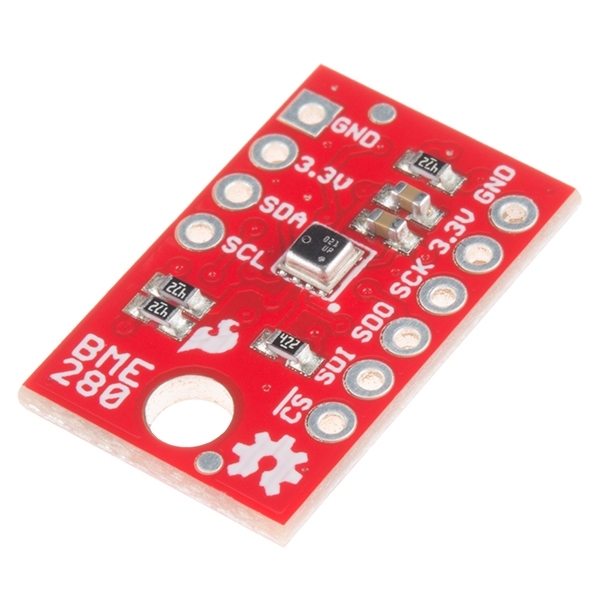

SparkFun Atmospheric Sensor Breakout - BME280 pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | GND | ground | |
| 3 | 3.3V | power | |
| 4 | 3.3V | power | |
| 5 | SDI/SDA | bidirectional | |
| 6 | SCK/SCL | bidirectional | |
| 7 | SCK/SCL | bidirectional | |
| 8 | SDO/ADR | bidirectional | |
| 9 | SDI/SDA | bidirectional | |
| 10 | !CS | bidirectional |
Schematic symbol and footprint
Footprint: SparkFun Atmospheric Sensor Breakout - BME280 (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
