COM-16917 · SparkFunActive

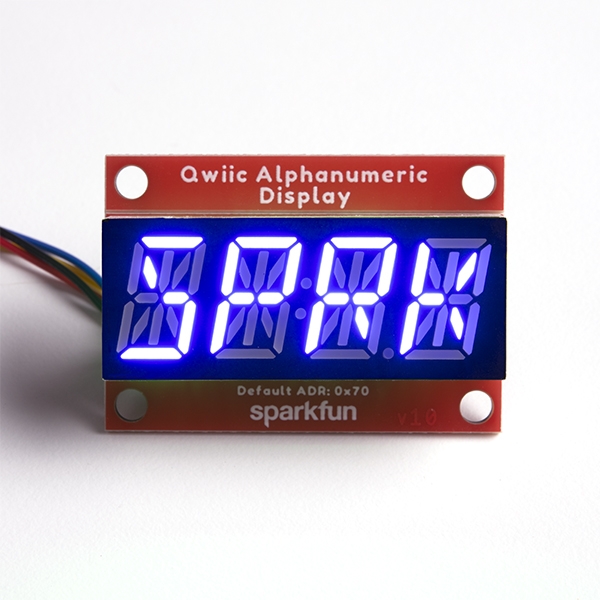

Display letters, numbers, and symbols easily with this blue 14-segment alphanumeric display featuring solderless Qwiic integration. (SparkFun COM-16917) Also listed by SparkFun as SPX-16426 (SparkX).
| Part number | COM-16917 |
|---|---|
| Manufacturer | SparkFun |
| Category | Displays & LEDs › LED Matrix & Segment |
| Pins | 4 |
SparkFun Qwiic Alphanumeric Display - Blue pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | 3V3 | power | |
| 3 | SDA | bidirectional | |
| 4 | SCL | input |
Schematic symbol and footprint
Schematic symbol
Footprint: JST-SH 4-pin SMD right-angle (SM04B-SRSS-TB) - Qwiic / STEMMA QT — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
