DEV-20690 · SparkFun

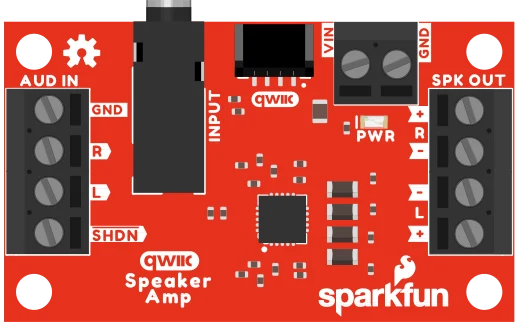

The SparkFun Qwiic Speaker Amp includes the Texas Instruments TPA2016D2 class-D stereo audio amp. (SparkFun DEV-20690)
| Part number | DEV-20690 |
|---|---|
| Manufacturer | SparkFun |
| Category | Audio › Speakers & Buzzers |
| Pins | 10 |
SparkFun Qwiic Speaker Amp pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VCC | power | |
| 2 | GND | ground | |
| 3 | GND | ground | |
| 4 | SPK_R_+ | bidirectional | |
| 5 | INR_SCRWPN | bidirectional | |
| 6 | SPK_R_- | bidirectional | |
| 7 | INL_SCRWPN | bidirectional | |
| 8 | SPK_L_- | bidirectional | |
| 9 | !SDZ! | bidirectional | |
| 10 | SPK_L_+ | bidirectional |
Schematic symbol and footprint
Schematic symbol
Footprint: SparkFun Qwiic Speaker Amp (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
