PGM-11801 · SparkFunObsolete
(SparkFun PGM-11801)
| Part number | PGM-11801 |
|---|---|
| Manufacturer | SparkFun |
| Category | Interface & Expansion › Programmers, Debuggers & USB-Serial |
| Pins | 28 |

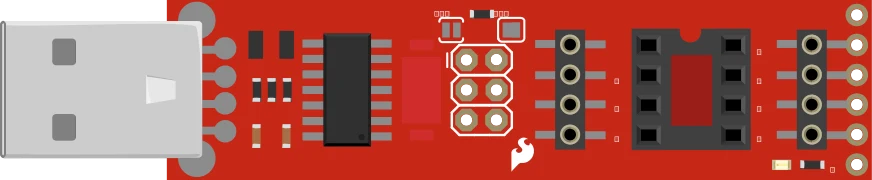

Tiny AVR Programmer pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | RST | bidirectional | |
| 2 | RST | bidirectional | |
| 3 | RST | bidirectional | |
| 4 | VCC | power | |
| 5 | VCC | power | |
| 6 | MOSI | bidirectional | |
| 7 | MISO | bidirectional | |
| 8 | VCC | power | |
| 9 | 3 | bidirectional | |
| 10 | 3 | bidirectional | |
| 11 | SCK | bidirectional | |
| 12 | SCK | bidirectional | |
| 13 | MISO | bidirectional | |
| 14 | SCK | bidirectional | |
| 15 | MOSI | bidirectional | |
| 16 | 4 | bidirectional | |
| 17 | 4 | bidirectional | |
| 18 | MISO | bidirectional | |
| 19 | MISO | bidirectional | |
| 20 | 5V | power | |
| 21 | RST | bidirectional | |
| 22 | GND | ground | |
| 23 | GND | ground | |
| 24 | GND | ground | |
| 25 | MOSI | bidirectional | |
| 26 | MOSI | bidirectional | |
| 27 | SCK | bidirectional | |
| 28 | GND | ground |
Schematic symbol and footprint
Footprint: Tiny AVR Programmer (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-09; excluding tax and shipping.
