ADA1770 · Adafruit
Adafruit product #1770.
| Part number | ADA1770 |
|---|---|
| Manufacturer | Adafruit |
| Category | Displays & LEDs › TFT LCD |
| Pins | 40 |
2.8" TFT LCD with Touchscreen Breakout Board w/MicroSD Socket pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | VIN | power | |
| 3 | LCD_CS | bidirectional | |
| 4 | LCD_CD_SCK | bidirectional | |
| 5 | LCD_WR_DC | bidirectional | |
| 6 | LCD_RD | bidirectional | |
| 7 | LCD_RST | bidirectional | |
| 8 | LCD_LITE | bidirectional | |
| 9 | LCD_X+ | bidirectional | |
| 10 | LCD_Y+ | bidirectional | |
| 11 | LCD_X- | bidirectional | |
| 12 | LCD_Y- | bidirectional | |
| 13 | LCD_DATA0 | bidirectional | |
| 14 | LCD_DATA1 | bidirectional | |
| 15 | LCD_DATA2 | bidirectional | |
| 16 | LCD_DATA3 | bidirectional | |
| 17 | LCD_DATA4 | bidirectional | |
| 18 | LCD_DATA5 | bidirectional | |
| 19 | LCD_DATA6 | bidirectional | |
| 20 | LCD_DATA7 | bidirectional | |
| 21 | GND | ground | |
| 22 | VIN | power | |
| 23 | +3.3V | power | |
| 24 | LCD_CD_SCK | bidirectional | |
| 25 | MISO | bidirectional | |
| 26 | MOSI | bidirectional | |
| 27 | LCD_CS | bidirectional | |
| 28 | LCD_WR_DC | bidirectional | |
| 29 | LCD_RST | bidirectional | |
| 30 | LCD_LITE | bidirectional | |
| 31 | LCD_Y+ | bidirectional | |
| 32 | LCD_X+ | bidirectional | |
| 33 | LCD_Y- | bidirectional | |
| 34 | LCD_X- | bidirectional | |
| 35 | IM3 | bidirectional | |
| 36 | IM2 | bidirectional | |
| 37 | IM1 | bidirectional | |
| 38 | IM0 | bidirectional | |
| 39 | SD_CS | bidirectional | |
| 40 | CARDDET | bidirectional |
Schematic symbol and footprint

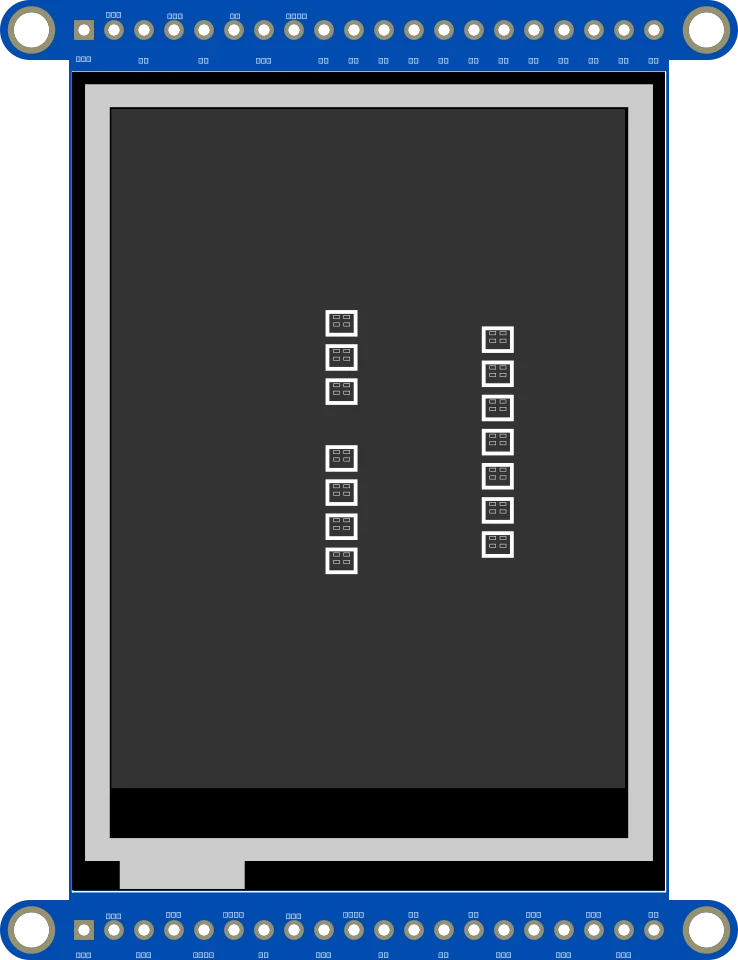

Footprint: Adafruit 2.8inch Resistive TFT (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
