ADA4754 · AdafruitActive
Adafruit product #4754 — built on BNO085, BNO080.
| Part number | ADA4754 |
|---|---|
| Manufacturer | Adafruit |
| Category | Sensors › IMU, Accelerometers & Gyros |
| Pins | 12 |

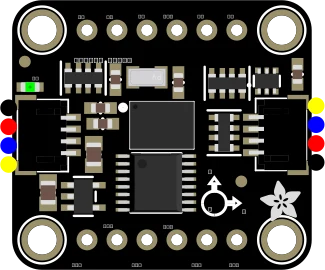

Adafruit 9-DOF Orientation IMU Fusion Breakout - BNO085 (BNO080) pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | BOOT | bidirectional | |
| 2 | PS0 | bidirectional | |
| 3 | PS1 | bidirectional | |
| 4 | RST | bidirectional | |
| 5 | MOSI | bidirectional | |
| 6 | CS | bidirectional | |
| 7 | VCC | power | |
| 8 | 3.3V | power | |
| 9 | GND | ground | |
| 10 | SCL/SCK/RX | bidirectional | |
| 11 | SDA/MISO/TX | bidirectional | |
| 12 | INT | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit BNO085 9-DOF Orientation IMU Fusion (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
