ADA2809 · AdafruitActive
Adafruit product #2809 — built on LIS3DH.
| Part number | ADA2809 |
|---|---|
| Manufacturer | Adafruit |
| Category | Sensors › IMU, Accelerometers & Gyros |
| Pins | 12 |

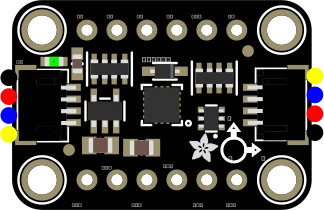

Adafruit LIS3DH Triple-Axis Accelerometer (+-2g/4g/8g/16g) pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | CS | bidirectional | |
| 2 | INT1 | bidirectional | |
| 3 | SDO | bidirectional | |
| 4 | SDA | bidirectional | |
| 5 | ADC1 | bidirectional | |
| 6 | SCL | bidirectional | |
| 7 | ADC2 | bidirectional | |
| 8 | GND | ground | |
| 9 | ADC3 | bidirectional | |
| 10 | 3.3V | power | |
| 11 | INT2 | bidirectional | |
| 12 | VCC | power |
Schematic symbol and footprint
Footprint: Adafruit LIS3DH Triple-Axis Accelerometer (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
