ADA4566 · Adafruit
Adafruit product #4566 — built on AHT20.
| Part number | ADA4566 |
|---|---|
| Manufacturer | Adafruit |
| Category | Sensors › Temperature & Humidity |
| Pins | 4 |

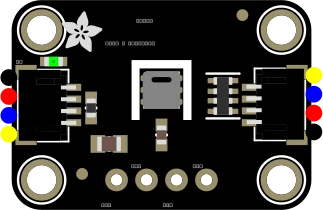

Adafruit AHT20 - Temperature & Humidity Sensor Breakout Board pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VCC | power | |
| 2 | GND | ground | |
| 3 | SCL | bidirectional | |
| 4 | SDA | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit AHT20 Temperature and Humidity Sensor (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
