ADA5971 · AdafruitActive
Adafruit product #5971 — built on DS18B20.
| Part number | ADA5971 |
|---|---|
| Manufacturer | Adafruit |
| Category | Interface & Expansion › I/O Expanders & Multiplexers |
| Pins | 3 |

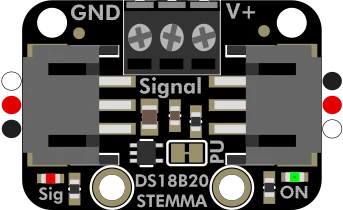

Adafruit Chainable DS18B20 Extender Breakout - STEMMA JST PH 2mm pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | SIGNAL | bidirectional | |
| 3 | VIN | power |
Schematic symbol and footprint
Footprint: Adafruit Chainable DS18B20 Extender Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
