ADA4862 · Adafruit
Adafruit product #4862.
| Part number | ADA4862 |
|---|---|
| Manufacturer | Adafruit |
| Category | Interface & Expansion › Expansion Boards & Shields |
| Pins | 80 |

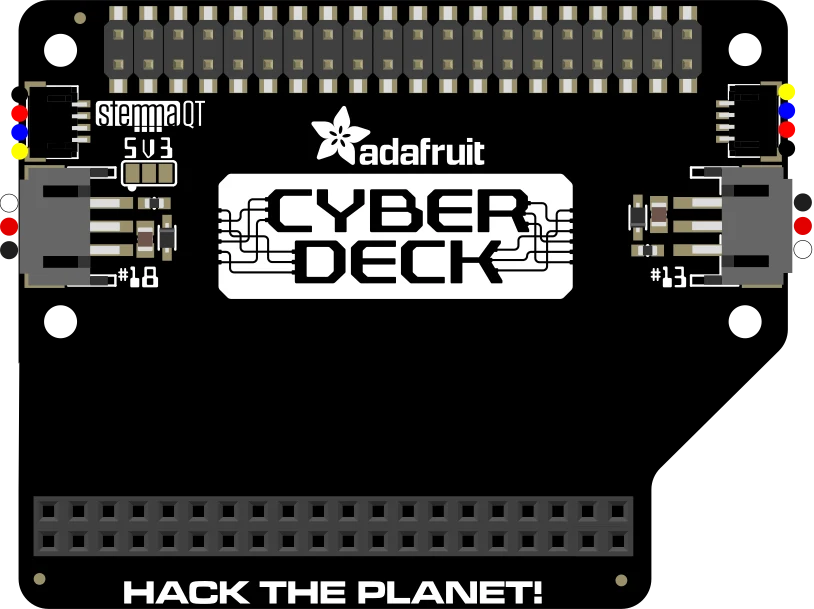

Adafruit CYBERDECK Bonnet for Raspberry Pi 400 & 500 pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | 5.0V | bidirectional | |
| 2 | 5.0V | bidirectional | |
| 3 | GND | ground | |
| 4 | TXD | bidirectional | |
| 5 | RXD | bidirectional | |
| 6 | GPIO18 | bidirectional | |
| 7 | GND | ground | |
| 8 | GPIO23 | bidirectional | |
| 9 | GPIO24 | bidirectional | |
| 10 | GND | ground | |
| 11 | GPIO25 | bidirectional | |
| 12 | SPI_CE0 | bidirectional | |
| 13 | SPI_CE1 | bidirectional | |
| 14 | EECLK | bidirectional | |
| 15 | GND | ground | |
| 16 | GPIO12 | bidirectional | |
| 17 | GND | ground | |
| 18 | GPIO16 | bidirectional | |
| 19 | GPIO20 | bidirectional | |
| 20 | GPIO21 | bidirectional | |
| 21 | 3.3V | power | |
| 22 | SDA | bidirectional | |
| 23 | SCL | bidirectional | |
| 24 | GPIO4 | bidirectional | |
| 25 | GND | ground | |
| 26 | GPIO17 | bidirectional | |
| 27 | GPIO27 | bidirectional | |
| 28 | GPIO22 | bidirectional | |
| 29 | 3.3V@1 | bidirectional | |
| 30 | SPI_MOSI | bidirectional | |
| 31 | SPI_MISO | bidirectional | |
| 32 | SPI_SCLK | bidirectional | |
| 33 | GND | ground | |
| 34 | EEDATA | bidirectional | |
| 35 | GPIO5 | bidirectional | |
| 36 | GPIO6 | bidirectional | |
| 37 | GPIO13 | bidirectional | |
| 38 | GPIO19 | bidirectional | |
| 39 | GPIO26 | bidirectional | |
| 40 | GND | ground | |
| 41 | 3.3V | power | |
| 42 | SDA | bidirectional | |
| 43 | SCL | bidirectional | |
| 44 | GPIO4 | bidirectional | |
| 45 | GND | ground | |
| 46 | GPIO17 | bidirectional | |
| 47 | GPIO27 | bidirectional | |
| 48 | GPIO22 | bidirectional | |
| 49 | 3.3V@1 | bidirectional | |
| 50 | SPI_MOSI | bidirectional | |
| 51 | SPI_MISO | bidirectional | |
| 52 | SPI_SCLK | bidirectional | |
| 53 | GND | ground | |
| 54 | EEDATA | bidirectional | |
| 55 | GPIO5 | bidirectional | |
| 56 | GPIO6 | bidirectional | |
| 57 | GPIO13 | bidirectional | |
| 58 | GPIO19 | bidirectional | |
| 59 | GPIO26 | bidirectional | |
| 60 | GND | ground | |
| 61 | 5.0V | bidirectional | |
| 62 | 5.0V | bidirectional | |
| 63 | GND | ground | |
| 64 | TXD | bidirectional | |
| 65 | RXD | bidirectional | |
| 66 | GPIO18 | bidirectional | |
| 67 | GND | ground | |
| 68 | GPIO23 | bidirectional | |
| 69 | GPIO24 | bidirectional | |
| 70 | GND | ground | |
| 71 | GPIO25 | bidirectional | |
| 72 | SPI_CE0 | bidirectional | |
| 73 | SPI_CE1 | bidirectional | |
| 74 | EECLK | bidirectional | |
| 75 | GND | ground | |
| 76 | GPIO12 | bidirectional | |
| 77 | GND | ground | |
| 78 | GPIO16 | bidirectional | |
| 79 | GPIO20 | bidirectional | |
| 80 | GPIO21 | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit CYBERDECK Bonnet (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Where to buy
| Supplier | Stock | Price | Status | |
|---|---|---|---|---|
| Mouser | 5 | $7.95 (1+) | View |
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
Related parts
Adafruit Joy Bonnet for Raspberry PiADA3464
Adafruit Prop-Maker FeatherWingADA3988
FeatherWing Doubler - Prototyping Add-on For All Feather BoardsADA2890
FeatherWing Proto - Prototyping Add-on For All Feather BoardsADA2884
Proto Shield Rev3 (Uno Size)TSX00083
SparkFun Qwiic micro:bit BreakoutBOB-16445

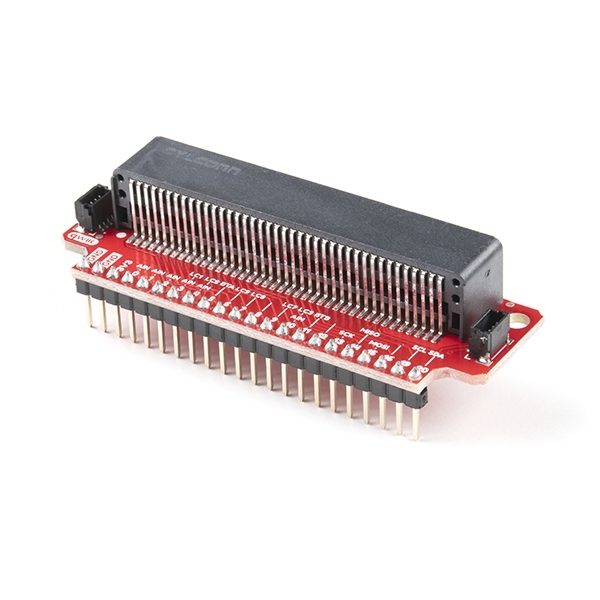

SparkFun Qwiic micro:bit Breakout (with Headers)BOB-16446
