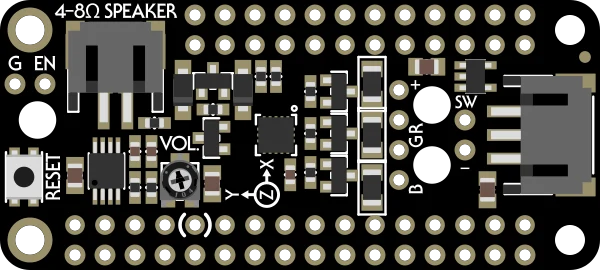

Name: Adafruit Prop-Maker FeatherWing
Brand: Adafruit

ADA3988 · AdafruitActive

Adafruit product #3988.

Part number	ADA3988
Manufacturer	Adafruit
Category	Interface & Expansion › Expansion Boards & Shields
Pins	64

Adafruit Prop-Maker FeatherWing pinout

Pin	Name	Type
1	VBAT	power
2	ENABLE	bidirectional
3	VBUS	power
4	BLUE	bidirectional
5	GREEN	bidirectional
6	RED	bidirectional
7	POWER	bidirectional
8	SWITCH	bidirectional
9	IRQ	bidirectional
10	NEOPIXEL	bidirectional
11	SCL	bidirectional
12	SDA	bidirectional
13	VBAT	power
14	ENABLE	bidirectional
15	VBUS	power
16	BLUE	bidirectional
17	GREEN	bidirectional
18	RED	bidirectional
19	POWER	bidirectional
20	SWITCH	bidirectional
21	IRQ	bidirectional
22	NEOPIXEL	bidirectional
23	SCL	bidirectional
24	SDA	bidirectional
25	GND	ground
26	ENABLE	bidirectional
27	V+	power
28	RED	bidirectional
29	SWITCH	bidirectional
30	GREEN	bidirectional
31	GND	ground
32	BLUE	bidirectional
33	RESET	bidirectional
34	+3V3	power
35	AREF	bidirectional
36	GND	ground
37	A0	bidirectional
38	A1	bidirectional
39	A2	bidirectional
40	A3	bidirectional
41	A4	bidirectional
42	A5	bidirectional
43	SCK	bidirectional
44	MOSI	bidirectional
45	MISO	bidirectional
46	RX	bidirectional
47	TX	bidirectional
48	G	bidirectional
49	RESET	bidirectional
50	+3V3	power
51	AREF	bidirectional
52	GND	ground
53	A0	bidirectional
54	A1	bidirectional
55	A2	bidirectional
56	A3	bidirectional
57	A4	bidirectional
58	A5	bidirectional
59	SCK	bidirectional
60	MOSI	bidirectional
61	MISO	bidirectional
62	RX	bidirectional
63	TX	bidirectional
64	G	bidirectional
