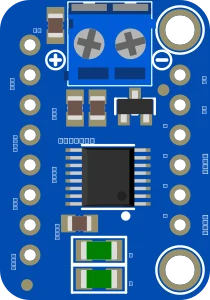

ADA3297 · AdafruitActive
Adafruit product #3297 — built on DRV8833.
| Part number | ADA3297 |
|---|---|
| Manufacturer | Adafruit |
| Category | Motor Drivers & Controllers › Stepper Motor Drivers |
| Pins | 16 |
Adafruit DRV8833 DC/Stepper Motor Driver Breakout Board pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VMOTOR | bidirectional | |
| 2 | PWRIN | bidirectional | |
| 3 | GND | ground | |
| 4 | GND | ground | |
| 5 | BSEN | bidirectional | |
| 6 | NFAULT | bidirectional | |
| 7 | ASEN | bidirectional | |
| 8 | BIN1 | bidirectional | |
| 9 | BOUT1 | bidirectional | |
| 10 | BIN2 | bidirectional | |
| 11 | BOUT2 | bidirectional | |
| 12 | !SLEEP | bidirectional | |
| 13 | AOUT2 | bidirectional | |
| 14 | AIN2 | bidirectional | |
| 15 | AOUT1 | bidirectional | |
| 16 | AIN1 | bidirectional |
Schematic symbol and footprint
Schematic symbol
Footprint: Adafruit DRV8833 DC/Stepper Motor Driver (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
