ADA6353 · AdafruitActive
Adafruit product #6353 — built on STSPIN220.
| Part number | ADA6353 |
|---|---|
| Manufacturer | Adafruit |
| Category | Motor Drivers & Controllers › Stepper Motor Drivers |
| Pins | 14 |

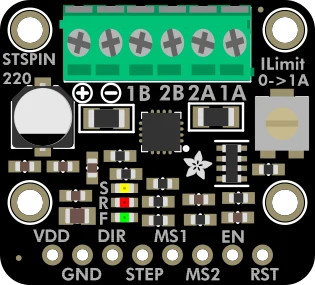

Adafruit STSPIN220 Stepper Motor Driver Breakout Board pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VMOTOR | bidirectional | |
| 2 | GND | ground | |
| 3 | OUTB1 | bidirectional | |
| 4 | OUTB2 | bidirectional | |
| 5 | OUTA2 | bidirectional | |
| 6 | OUTA1 | bidirectional | |
| 7 | VDD | power | |
| 8 | GND | ground | |
| 9 | DIR | bidirectional | |
| 10 | STEP | bidirectional | |
| 11 | MS1 | bidirectional | |
| 12 | MS2 | bidirectional | |
| 13 | ENABLE | bidirectional | |
| 14 | RESET | bidirectional |
Schematic symbol and footprint
Schematic symbol
Footprint: Adafruit STSPIN220 Stepper Motor Driver (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
