ADA4300 · Adafruit
Adafruit product #4300.
| Part number | ADA4300 |
|---|---|
| Manufacturer | Adafruit |
| Category | Development Boards › SAMD / SAM Boards |
| Pins | 4 |

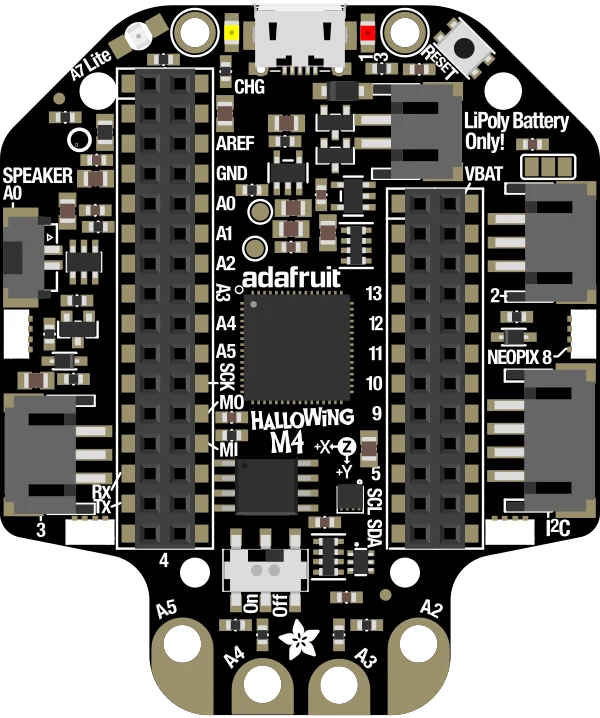

Adafruit HalloWing M4 Express - Goth Adafruit Black Edition pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | A5 | bidirectional | |
| 2 | A2 | bidirectional | |
| 3 | A4 | bidirectional | |
| 4 | A3 | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit Hallowing M4 (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
