ADA715 · AdafruitActive
Adafruit product #715. Interfaces: I2C.
| Part number | ADA715 |
|---|---|
| Manufacturer | Adafruit |
| Category | Displays & LEDs › Character LCD |
| Pins | 11 |

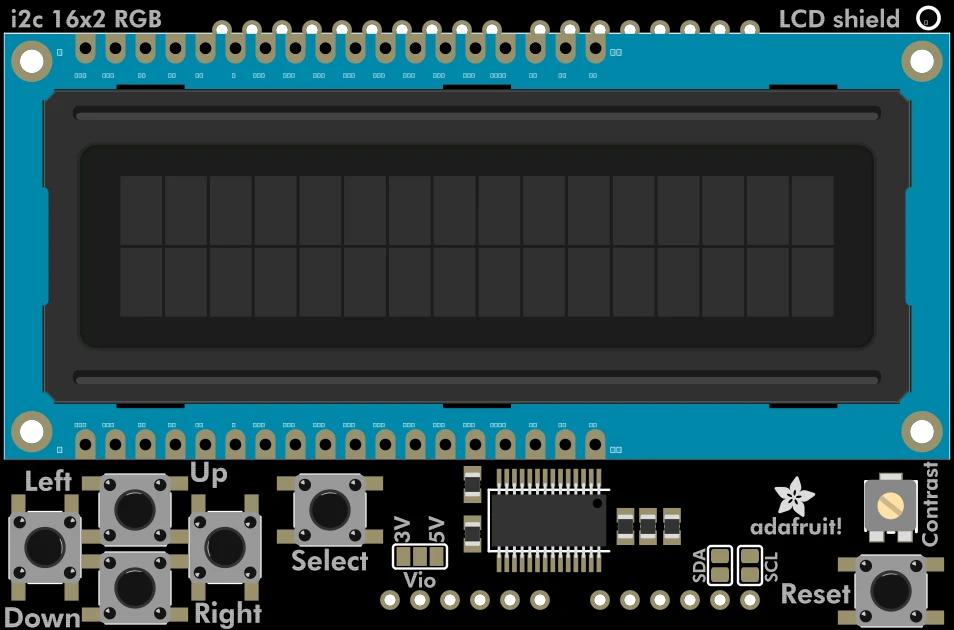

Adafruit I2C Controlled + Keypad Shield Kit for 16x2 LCD pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | SCL | bidirectional | |
| 2 | SDA | bidirectional | |
| 3 | GND | ground | |
| 4 | RESET | bidirectional | |
| 5 | 3.3V | power | |
| 6 | +5V | power | |
| 7 | GND | ground | |
| 8 | GND | ground | |
| 9 | VIN | power | |
| 10 | A4 | bidirectional | |
| 11 | A5 | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit RGB LCD Shield Rev B (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
