Name: Basic 16x2 Character LCD - RGB Backlight 5V
Brand: SparkFun

Parts › Displays & LEDs › Character LCD

LCD-10862 · SparkFunActive

Basic 16x2 Character LCD - RGB Backlight 5V photo

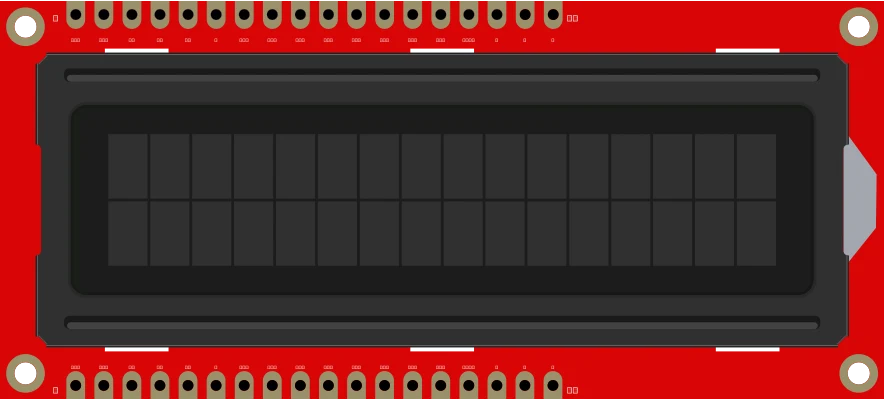

Basic 16x2 Character LCD - RGB Backlight 5V illustration

http://www.nkcelectronics.com/Character-LCD-Module-16x2-RGB-Backlight_p_114.html (SparkFun LCD-10862)

Part number	LCD-10862
Manufacturer	SparkFun
Category	Displays & LEDs › Character LCD
Pins	36
Voltage (max)	5 V

Basic 16x2 Character LCD - RGB Backlight 5V pinout

Pin	Name	Type
1	RED_LED	bidirectional
2	D1	bidirectional
3	GREEN_LED	bidirectional
4	D2	bidirectional
5	BLUE_LED	bidirectional
6	D3	bidirectional
7	D4	bidirectional
8	D5	bidirectional
9	D6	bidirectional
10	D7	bidirectional
11	LED-	bidirectional
12	RED_LED	bidirectional
13	GREEN_LED	bidirectional
14	BLUE_LED	bidirectional
15	VSS	ground
16	VDD	power
17	Contrast	bidirectional
18	RS	bidirectional
19	R/W	bidirectional
20	E	bidirectional
21	D0	bidirectional
22	D1	bidirectional
23	D2	bidirectional
24	D3	bidirectional
25	VSS	ground
26	VDD	power
27	D4	bidirectional
28	Contrast	bidirectional
29	RS	bidirectional
30	D5	bidirectional
31	R/W	bidirectional
32	D6	bidirectional
33	E	bidirectional
34	D7	bidirectional
35	D0	bidirectional
36	LED-	bidirectional

Schematic symbol and footprint

Schematic symbol

Footprint: Basic 16x2 Character LCD - RGB Backlight 5V (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
