ADA5743 · AdafruitActive
Adafruit product #5743. Interfaces: I2C.
| Part number | ADA5743 |
|---|---|
| Manufacturer | Adafruit |
| Category | Interface & Expansion › I/O Expanders & Multiplexers |
| Pins | 6 |

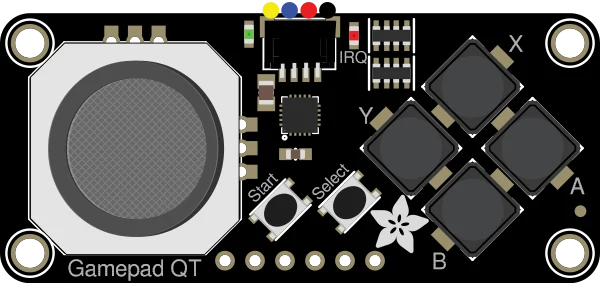

Adafruit Mini I2C Gamepad with seesaw - STEMMA QT / Qwiic pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VCC | power | |
| 2 | GND | ground | |
| 3 | SCL | bidirectional | |
| 4 | SDA | bidirectional | |
| 5 | IRQ | bidirectional | |
| 6 | UPDI | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit Mini I2C STEMMA QT Gamepad (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
