ADA5768 · Adafruit
Adafruit product #5768 — built on RP2040. Interfaces: I2S.
| Part number | ADA5768 |
|---|---|
| Manufacturer | Adafruit |
| Category | Development Boards › RP2040 / RP2350 Boards |
| Pins | 37 |

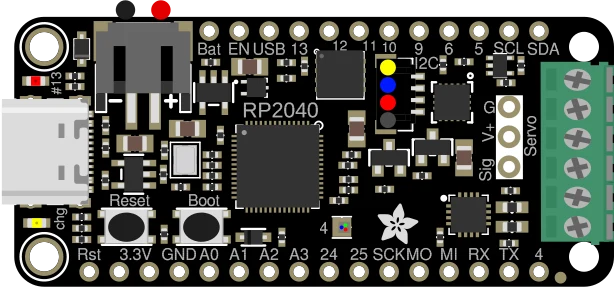

Adafruit RP2040 Prop-Maker Feather with I2S Audio Amplifier pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VBAT | power | |
| 2 | EN | bidirectional | |
| 3 | VBUS | power | |
| 4 | D13 | bidirectional | |
| 5 | D12 | bidirectional | |
| 6 | D11 | bidirectional | |
| 7 | D10 | bidirectional | |
| 8 | D9 | bidirectional | |
| 9 | D6 | bidirectional | |
| 10 | D5 | bidirectional | |
| 11 | SCL | bidirectional | |
| 12 | SDA | bidirectional | |
| 13 | PIXELOUT | bidirectional | |
| 14 | GND | ground | |
| 15 | GND | ground | |
| 16 | V+ | power | |
| 17 | V+ | power | |
| 18 | SERVO | bidirectional | |
| 19 | BUTTON | bidirectional | |
| 20 | VO- | bidirectional | |
| 21 | VO+ | bidirectional | |
| 22 | !RESET | bidirectional | |
| 23 | +3V3 | power | |
| 24 | +3V3 | power | |
| 25 | GND | ground | |
| 26 | A0 | bidirectional | |
| 27 | A1 | bidirectional | |
| 28 | A2 | bidirectional | |
| 29 | A3 | bidirectional | |
| 30 | D24 | bidirectional | |
| 31 | D25 | bidirectional | |
| 32 | SCK | bidirectional | |
| 33 | MOSI | bidirectional | |
| 34 | MISO | bidirectional | |
| 35 | RX | bidirectional | |
| 36 | TX | bidirectional | |
| 37 | D4 | bidirectional |
Schematic symbol and footprint
Schematic symbol
Footprint: Adafruit RP2040 Prop-Maker Feather (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
