ADA3500 · Adafruit
Adafruit product #3500.
| Part number | ADA3500 |
|---|---|
| Manufacturer | Adafruit |
| Category | Development Boards › SAMD / SAM Boards |
| Pins | 10 |
Adafruit Trinket M0 - for use with CircuitPython & Arduino IDE pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VBAT | power | |
| 2 | VBUS | power | |
| 3 | GND | ground | |
| 4 | D0_A4_PA08_SDA | bidirectional | |
| 5 | D4_A2_PA06_TXD_MOSI | bidirectional | |
| 6 | D1_A0_PA02 | bidirectional | |
| 7 | D3_A3_PA07_RXD_SCK | bidirectional | |
| 8 | D2_A1_PA09_SCL_MISO | bidirectional | |
| 9 | !RESET | bidirectional | |
| 10 | 3.3V | power |

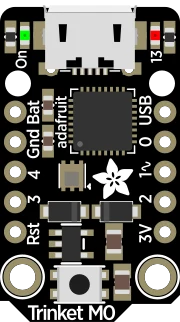

Schematic symbol and footprint
Footprint: Adafruit Trinket M0 (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
