DEV-13883 · SparkFunActive

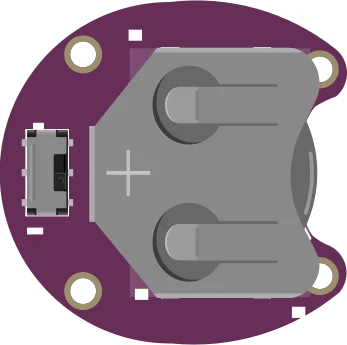

This LilyPad coin cell battery holder securely fits a CR2032 battery and includes an in-line switch to easily turn off your wearable circuits. (SparkFun DEV-13883)
| Part number | DEV-13883 |
|---|---|
| Manufacturer | SparkFun |
| Category | Power › Batteries & Holders |
| Pins | 4 |
LilyPad Coin Cell Battery Holder - 20mm (Switched) pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VCC | power | |
| 2 | GND | ground | |
| 3 | GND | ground | |
| 4 | VCC | power |
Schematic symbol and footprint
Footprint: LilyPad_Coin_Cell_Battery_Holder-Switched-20mm (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-09; excluding tax and shipping.
