ADA4980 · AdafruitActive
Adafruit product #4980. Interfaces: I2C.
| Part number | ADA4980 |
|---|---|
| Manufacturer | Adafruit |
| Category | Displays & LEDs › LED Drivers & Controllers |
| Pins | 12 |
NeoKey 1x4 QT I2C - Four Mechanical Key Switches with NeoPixels pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VCC | power | |
| 2 | 3.3V | power | |
| 3 | GND | ground | |
| 4 | SCL | bidirectional | |
| 5 | SDA | bidirectional | |
| 6 | INT | bidirectional | |
| 7 | VCC | power | |
| 8 | 3.3V | power | |
| 9 | GND | ground | |
| 10 | SCL | bidirectional | |
| 11 | SDA | bidirectional | |
| 12 | INT | bidirectional |
Schematic symbol and footprint

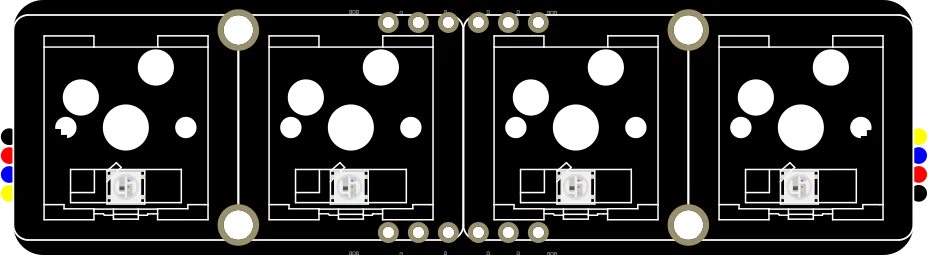

Footprint: Adafruit NeoKey 1x4 QT I2C (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
