Name: SparkFun AzureWave Thing Plus - AW-CU488
Brand: SparkFun

DEV-19957 · SparkFunActive

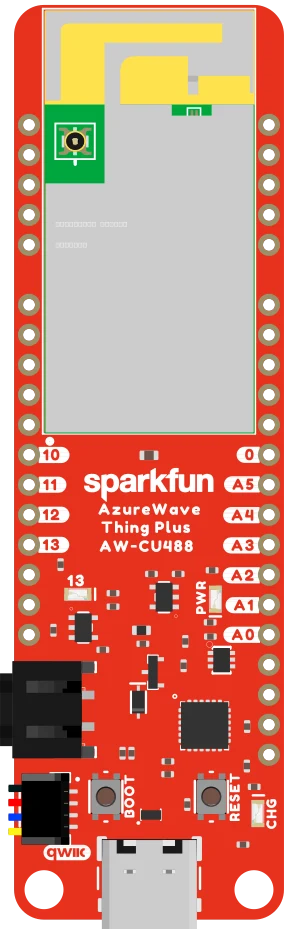

The SparkFun AzureWave Thing Plus is a Feather form-factor development board equipped with the AW-CU488. (SparkFun DEV-19957)

Part number	DEV-19957
Manufacturer	SparkFun
Category	Development Boards › Other ARM & RISC-V Boards
Pins	38
Frequency	5 GHz

SparkFun AzureWave Thing Plus - AW-CU488 pinout

Pin	Name	Type
1	GND	ground
2	25/RX (PA8/UART-LOG-RXD)	bidirectional
3	29 (PA14)	bidirectional
4	24/TX (PA7/UART-LOG-TXD)	bidirectional
5	28 (PA15)	bidirectional
6	23 (PA2)	bidirectional
7	27 (PA27)	bidirectional
8	22 (PA4)	bidirectional
9	26 (PA28)	bidirectional
10	21 (PA0)	bidirectional
11	5/SDA (PA26)	bidirectional
12	20 (PB31)	bidirectional
13	6/SCL (PA25)	bidirectional
14	4/TX1 (LP_UART_TXD)	bidirectional
15	7 (PA30)	bidirectional
16	3/RX1 (LP_UART_RXD)	bidirectional
17	8/CS (PA19)	bidirectional
18	2/POCI (PA17)	bidirectional
19	9/A6 (PB3)	bidirectional
20	1/PICO (PA16)	bidirectional
21	10 (PB23)	bidirectional
22	0/SCK (PA18)	bidirectional
23	11 (PB22)	bidirectional
24	19/A5 (PB2)	bidirectional
25	12 (PB26)	bidirectional
26	18/A4 (PB1)	bidirectional
27	13 (PB29)	bidirectional
28	17/A3 (PB7)	bidirectional
29	V_USB	bidirectional
30	16/A2 (PB6)	bidirectional
31	EN	bidirectional
32	15/A1 (PB5)	bidirectional
33	V_BATT	bidirectional
34	14/A0 (PB4)	bidirectional
35	GND	ground
36	N/C	bidirectional
37	3.3V	power
38	RESET (CHIP_EN)	bidirectional
