Name: SparkFun GNSS Receiver - SAM-M8Q (Qwiic)
Brand: SparkFun

Parts › Communication & Wireless › GNSS / GPS

GPS-30018 · SparkFun

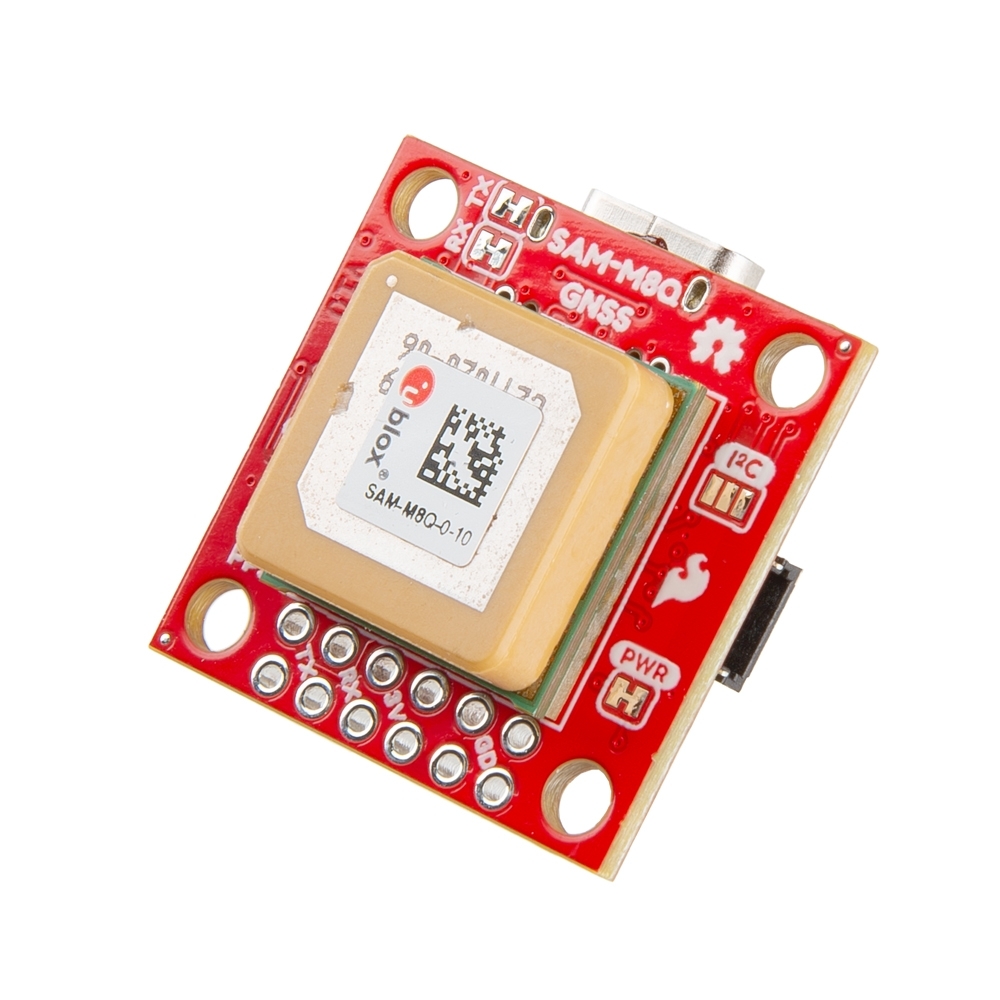

SparkFun GNSS Receiver - SAM-M8Q (Qwiic) photo

A beginner-friendly GNSS board that grows with you. Features USB-C for easy PC connection, Qwiic for embedded use, and 10Hz multi-constellation tracking. (SparkFun GPS-30018)

Part number	GPS-30018
Manufacturer	SparkFun
Category	Communication & Wireless › GNSS / GPS
Pins	4
Frequency	10 Hz

SparkFun GNSS Receiver - SAM-M8Q (Qwiic) pinout

Pin	Name	Type
1	GND	ground
2	3V3	power
3	SDA	bidirectional
4	SCL	input

Schematic symbol and footprint

Schematic symbol

Footprint: JST-SH 4-pin SMD right-angle (SM04B-SRSS-TB) - Qwiic / STEMMA QT — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
