GPS-21834 · SparkFunActive

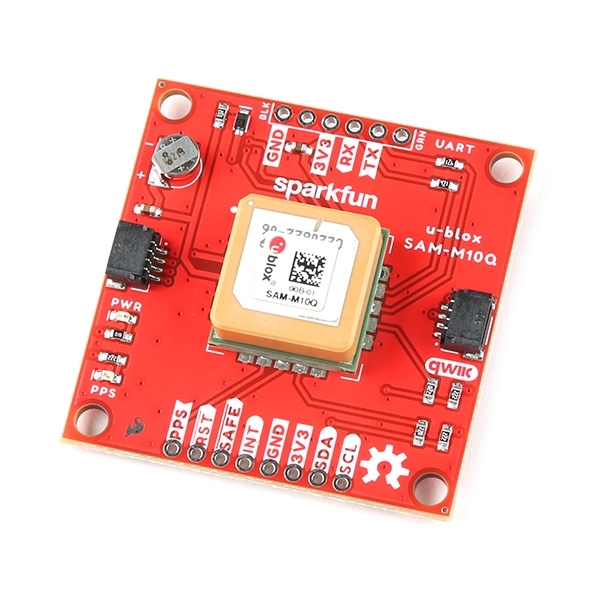

The SAM-M10Q includes a built-in chip antenna and is compatible with the L1 band on all five GNSS constellations. (SparkFun GPS-21834)
| Part number | GPS-21834 |
|---|---|
| Manufacturer | SparkFun |
| Category | Communication & Wireless › GNSS / GPS |
| Pins | 4 |
SparkFun GPS Breakout - Chip Antenna, SAM-M10Q (Qwiic) pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | 3V3 | power | |
| 3 | SDA | bidirectional | |
| 4 | SCL | input |
Schematic symbol and footprint
Schematic symbol
Footprint: JST-SH 4-pin SMD right-angle (SM04B-SRSS-TB) - Qwiic / STEMMA QT — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
