ROB-17590 · SparkFunActive

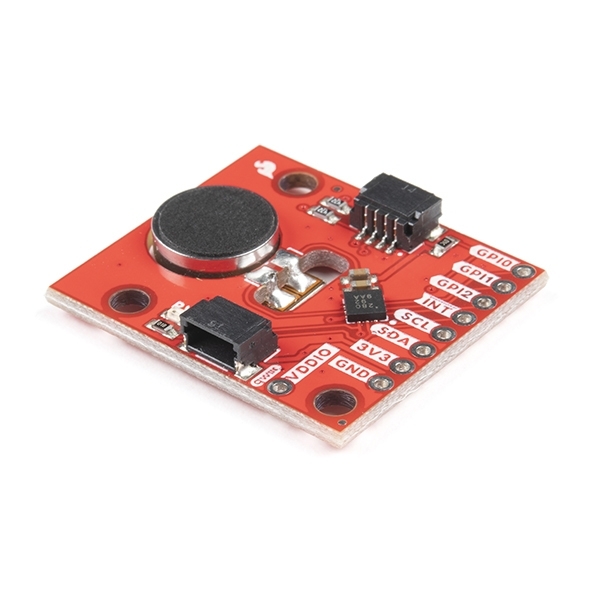

The Qwiic Haptic Motor Driver includes an itty-bitty, Linear Resonant Actuator (LRA) vibration motor and DialogSemi's DA7280 IC. (SparkFun ROB-17590)
| Part number | ROB-17590 |
|---|---|
| Manufacturer | SparkFun |
| Category | Motor Drivers & Controllers › Load & Solenoid Drivers |
| Pins | 4 |
SparkFun Qwiic Haptic Driver - DA7280 pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | 3V3 | power | |
| 3 | SDA | bidirectional | |
| 4 | SCL | input |
Schematic symbol and footprint
Schematic symbol
Footprint: JST-SH 4-pin SMD right-angle (SM04B-SRSS-TB) - Qwiic / STEMMA QT — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
