LCD-23453 · SparkFunActive

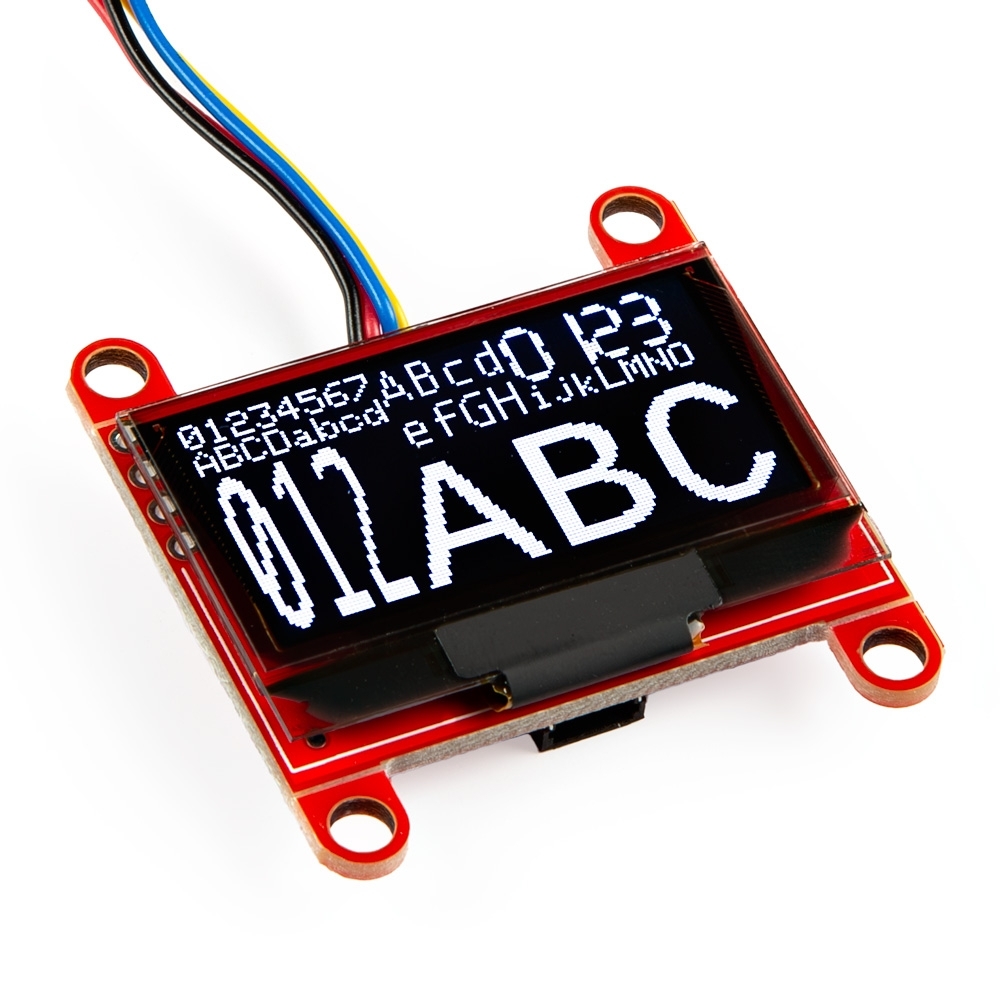

The SparkFun Qwiic OLED is a crisp 1.3-inch, 128x64 monochrome display that easily adds a screen to your project using the Qwiic system, no soldering required. (SparkFun LCD-23453)
| Part number | LCD-23453 |
|---|---|
| Manufacturer | SparkFun |
| Category | Displays & LEDs › OLED |
| Pins | 4 |
SparkFun Qwiic OLED - (1.3in., 128x64) pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | 3V3 | power | |
| 3 | SDA | bidirectional | |
| 4 | SCL | input |
Schematic symbol and footprint
Schematic symbol
Footprint: JST-SH 4-pin SMD right-angle (SM04B-SRSS-TB) - Qwiic / STEMMA QT — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
