DEV-20270 · SparkFun

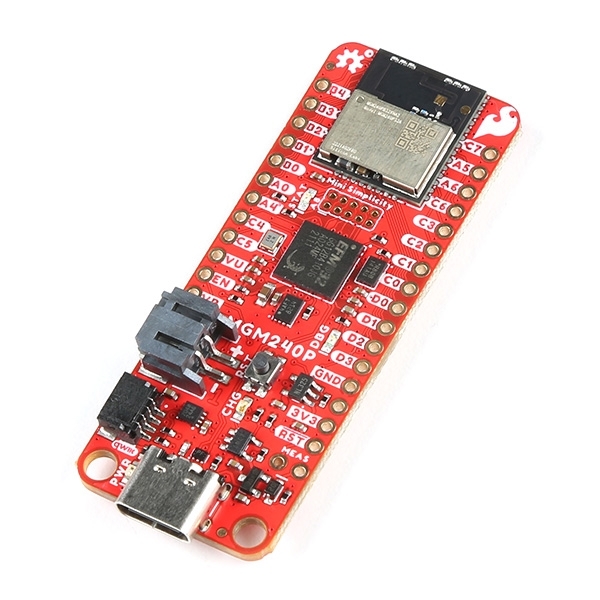

The SparkFun Thing Plus Matter is the first easily accessible board that combines Matter and SparkFun’s Qwiic ecosystem for new IoT development! (SparkFun DEV-20270)
| Part number | DEV-20270 |
|---|---|
| Manufacturer | SparkFun |
| Category | Development Boards › Other ARM & RISC-V Boards |
| Pins | 40 |

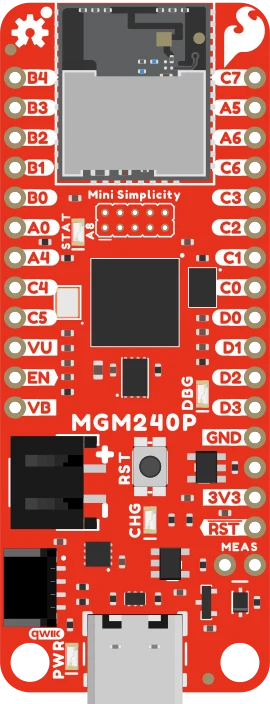

SparkFun Thing Plus Matter - MGM240P pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | SDA/PB04 | bidirectional | |
| 2 | PC07 | bidirectional | |
| 3 | SCL/PB03 | bidirectional | |
| 4 | TX/PA05 | bidirectional | |
| 5 | PB02 | bidirectional | |
| 6 | 15 | bidirectional | |
| 7 | PB01 | bidirectional | |
| 8 | POCI/PC06 | bidirectional | |
| 9 | PB00 | bidirectional | |
| 10 | PICO/PC03 | bidirectional | |
| 11 | GND | ground | |
| 12 | RX/PA06 | bidirectional | |
| 13 | SWO/PA03 | bidirectional | |
| 14 | SWCLK/PA01 | bidirectional | |
| 15 | PTI_DATA/PC04 | bidirectional | |
| 16 | PA00 | bidirectional | |
| 17 | 3.3V | power | |
| 18 | !RESET! | bidirectional | |
| 19 | TX/PA05 | bidirectional | |
| 20 | SWDIO/PA02 | bidirectional | |
| 21 | PTI_FRAME/PC05 | bidirectional | |
| 22 | SCK/PC02 | bidirectional | |
| 23 | PA04 | bidirectional | |
| 24 | PC01 | bidirectional | |
| 25 | PTI_DATA/PC04 | bidirectional | |
| 26 | PC00 | bidirectional | |
| 27 | N$27 | bidirectional | |
| 28 | PTI_FRAME/PC05 | bidirectional | |
| 29 | PD00 | bidirectional | |
| 30 | N$7 | bidirectional | |
| 31 | V_USB | bidirectional | |
| 32 | PD01 | bidirectional | |
| 33 | EN | bidirectional | |
| 34 | PD02 | bidirectional | |
| 35 | V_BATT | bidirectional | |
| 36 | A0 | bidirectional | |
| 37 | GND | ground | |
| 38 | 26 | bidirectional | |
| 39 | 3.3V | power | |
| 40 | N$28 | bidirectional |
Schematic symbol and footprint
Footprint: SparkFun Thing Plus Matter - MGM240P (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
