72MHz Cortex-M4
| Part number | Teensy 3.2 |
|---|---|
| Category | Development Boards › Other ARM & RISC-V Boards |
| Package | Module |
| Pins | 37 |
| Frequency | 72 MHz |
Teensy 3.2 pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | Vin | power | |
| 2 | AGND | ground | |
| 3 | VUSB | bidirectional | |
| 4 | 3V3 | power | |
| 5 | A9/D23 | bidirectional | |
| 6 | AREF | bidirectional | |
| 7 | A8/D22 | bidirectional | |
| 8 | A11 | bidirectional | |
| 9 | A7/D21 | bidirectional | |
| 10 | A10 | bidirectional | |
| 11 | A6/D20 | bidirectional | |
| 12 | A5/D19 | bidirectional | |
| 13 | A4/D18 | bidirectional | |
| 14 | A3/D17 | bidirectional | |
| 15 | A2/D16 | bidirectional | |
| 16 | A1/D15 | bidirectional | |
| 17 | A0/D14 | bidirectional | |
| 18 | A14/DAC | bidirectional | |
| 19 | D13 | bidirectional | |
| 20 | Program | bidirectional | |
| 21 | GND | ground | |
| 22 | D0 | bidirectional | |
| 23 | D1 | bidirectional | |
| 24 | D2 | bidirectional | |
| 25 | D3 | bidirectional | |
| 26 | D4 | bidirectional | |
| 27 | D5 | bidirectional | |
| 28 | D6 | bidirectional | |
| 29 | D7 | bidirectional | |
| 30 | D8 | bidirectional | |
| 31 | D9 | bidirectional | |
| 32 | D10 | bidirectional | |
| 33 | D11 | bidirectional | |
| 34 | D12 | bidirectional | |
| 35 | VBat | power | |
| 36 | 3V3 | power | |
| 37 | GND | ground |
Schematic symbol and footprint
Schematic symbol

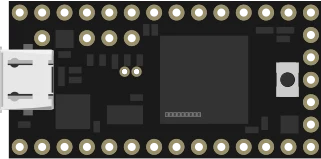

Footprint: Teensy 3.1 (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
