SPX-18038 · SparkFun

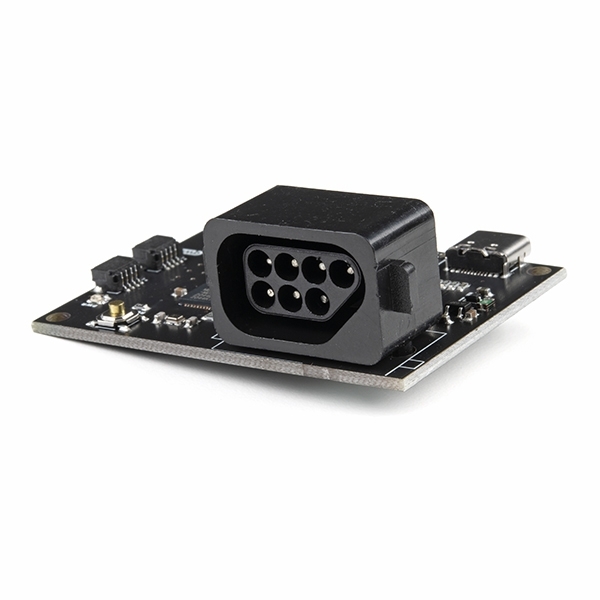

The QwiicNES features an NES Controller connector and a row of 0.1" output pins. Press a button on the controller and the corresponding pin goes from LOW t (SparkFun SPX-18038)
| Part number | SPX-18038 |
|---|---|
| Manufacturer | SparkFun |
| Category | User Input & Controls › Joysticks & Gamepads |
| Pins | 4 |
The QwiicNES pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | 3V3 | power | |
| 3 | SDA | bidirectional | |
| 4 | SCL | input |
Schematic symbol and footprint
Schematic symbol
Footprint: JST-SH 4-pin SMD right-angle (SM04B-SRSS-TB) - Qwiic / STEMMA QT — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
