ADA6113 · AdafruitActive
Adafruit product #6113.
| Part number | ADA6113 |
|---|---|
| Manufacturer | Adafruit |
| Category | Displays & LEDs › TFT LCD |
| Pins | 14 |
Adafruit 1.14" 240x135 Color Newxie TFT Display pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | BACKLIGHT | bidirectional | |
| 2 | DC | bidirectional | |
| 3 | TFTCS | bidirectional | |
| 4 | MOSI | bidirectional | |
| 5 | SCK | bidirectional | |
| 6 | GND | ground | |
| 7 | VIN | power | |
| 8 | BACKLIGHT | bidirectional | |
| 9 | DC | bidirectional | |
| 10 | TFTCS | bidirectional | |
| 11 | MOSI | bidirectional | |
| 12 | SCK | bidirectional | |
| 13 | GND | ground | |
| 14 | VIN | power |
Schematic symbol and footprint

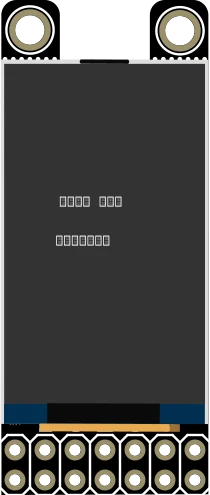

Footprint: Adafruit Color Newxie TFT Display (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
