ADA4264 · AdafruitActive
Adafruit product #4264 — built on ESP32.
| Part number | ADA4264 |
|---|---|
| Manufacturer | Adafruit |
| Category | Communication & Wireless › Wi-Fi |
| Pins | 27 |

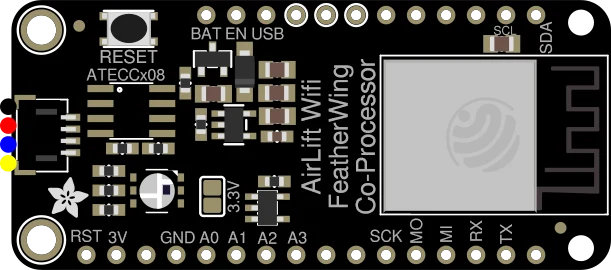

Adafruit AirLift FeatherWing – ESP32 WiFi Co-Processor pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VBAT | power | |
| 2 | EN | bidirectional | |
| 3 | VBUS | power | |
| 4 | ESP_CS | bidirectional | |
| 5 | ESP_RESET | bidirectional | |
| 6 | ESP_BUSY | bidirectional | |
| 7 | 7 | bidirectional | |
| 8 | D9 | bidirectional | |
| 9 | D6 | bidirectional | |
| 10 | D5 | bidirectional | |
| 11 | SCL | bidirectional | |
| 12 | SDA | bidirectional | |
| 13 | RESET | bidirectional | |
| 14 | 15 | bidirectional | |
| 15 | GND | ground | |
| 16 | A0 | bidirectional | |
| 17 | A1 | bidirectional | |
| 18 | A2 | bidirectional | |
| 19 | A3 | bidirectional | |
| 20 | A4 | bidirectional | |
| 21 | A5 | bidirectional | |
| 22 | SCK | bidirectional | |
| 23 | MOSI | bidirectional | |
| 24 | MISO | bidirectional | |
| 25 | 3 | bidirectional | |
| 26 | 2 | bidirectional | |
| 27 | NC | bidirectional |
