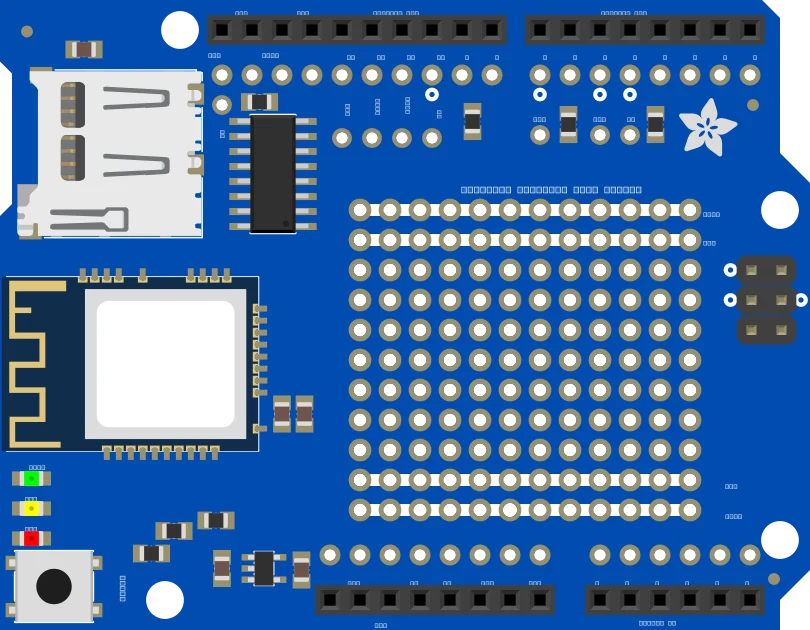

Name: Adafruit WINC1500 WiFi Shield with PCB Antenna
Brand: Adafruit

ADA3653 · AdafruitActive

Adafruit product #3653 — built on WINC1500.

Part number	ADA3653
Manufacturer	Adafruit
Category	Communication & Wireless › Wi-Fi
Pins	75

Adafruit WINC1500 WiFi Shield with PCB Antenna pinout

Pin	Name	Type
1	SCL	bidirectional
2	SDA	bidirectional
3	AREF	bidirectional
4	GND	ground
5	D13	bidirectional
6	D12	bidirectional
7	D11	bidirectional
8	D10	bidirectional
9	D9	bidirectional
10	D8	bidirectional
11	D7	bidirectional
12	D6	bidirectional
13	D5	bidirectional
14	D4	bidirectional
15	D3	bidirectional
16	D2	bidirectional
17	D1	bidirectional
18	D0	bidirectional
19	SCL	bidirectional
20	SDA	bidirectional
21	AREF	bidirectional
22	GND	ground
23	D13	bidirectional
24	D12	bidirectional
25	D11	bidirectional
26	D10	bidirectional
27	D9	bidirectional
28	D8	bidirectional
29	D7	bidirectional
30	D6	bidirectional
31	D5	bidirectional
32	D4	bidirectional
33	D3	bidirectional
34	D2	bidirectional
35	D1	bidirectional
36	D0	bidirectional
37	WINC_EN	bidirectional
38	SCK	bidirectional
39	MISO	bidirectional
40	MOSI	bidirectional
41	WINC_CS	bidirectional
42	WINC_IRQ	bidirectional
43	WINC_RST	bidirectional
44	SDCS	bidirectional
45	MISO_ICSP	bidirectional
46	SCK_ICSP	bidirectional
47	MOSI_ICSP	bidirectional
48	GND	ground
49	NC	bidirectional
50	VIOREF	bidirectional
51	RESET	bidirectional
52	+3V	power
53	+5V	power
54	GND	ground
55	GND	ground
56	VIN	power
57	A0	bidirectional
58	A1	bidirectional
59	A2	bidirectional
60	A3	bidirectional
61	A4	bidirectional
62	A5	bidirectional
63	NC	bidirectional
64	VIOREF	bidirectional
65	RESET	bidirectional
66	+3V	power
67	+5V	power
68	GND	ground
69	VIN	power
70	A0	bidirectional
71	A1	bidirectional
72	A2	bidirectional
73	A3	bidirectional
74	A4	bidirectional
75	A5	bidirectional
