ADA6418 · AdafruitActive
Adafruit product #6418.
| Part number | ADA6418 |
|---|---|
| Manufacturer | Adafruit |
| Category | Displays & LEDs › E-Paper |
| Pins | 82 |

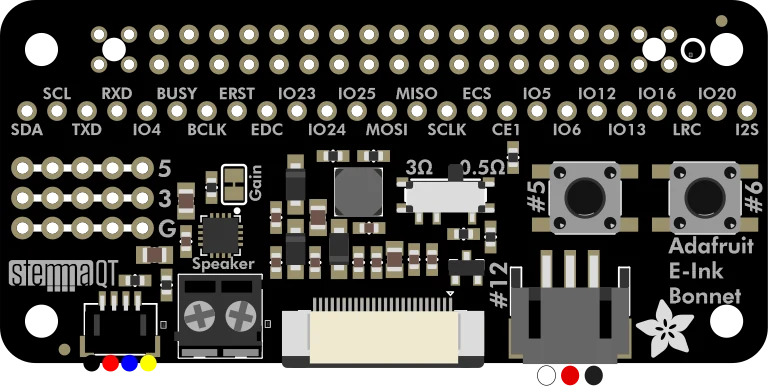

Adafruit E-Ink Bonnet for Raspberry Pi - 24-pin E-Paper Displays pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | +5V | power | |
| 2 | +5V | power | |
| 3 | GND | ground | |
| 4 | TXD | bidirectional | |
| 5 | RXD | bidirectional | |
| 6 | BCLK | bidirectional | |
| 7 | GND | ground | |
| 8 | GPIO23 | bidirectional | |
| 9 | GPIO24 | bidirectional | |
| 10 | GND | ground | |
| 11 | GPIO25 | bidirectional | |
| 12 | EPD_CS | bidirectional | |
| 13 | SPI_CE1 | bidirectional | |
| 14 | EECLK | bidirectional | |
| 15 | GND | ground | |
| 16 | GPIO12 | bidirectional | |
| 17 | GND | ground | |
| 18 | GPIO16 | bidirectional | |
| 19 | GPIO20 | bidirectional | |
| 20 | DIN | bidirectional | |
| 21 | 3.3V | power | |
| 22 | SDA | bidirectional | |
| 23 | SCL | bidirectional | |
| 24 | GPIO4 | bidirectional | |
| 25 | GND | ground | |
| 26 | EPD_BUSY | bidirectional | |
| 27 | EPD_RST | bidirectional | |
| 28 | EPD_DC | bidirectional | |
| 29 | 3.3V | power | |
| 30 | MOSI | bidirectional | |
| 31 | MISO | bidirectional | |
| 32 | SCLK | bidirectional | |
| 33 | GND | ground | |
| 34 | EEDATA | bidirectional | |
| 35 | GPIO5 | bidirectional | |
| 36 | GPIO6 | bidirectional | |
| 37 | GPIO13 | bidirectional | |
| 38 | LRCLK | bidirectional | |
| 39 | GPIO26 | bidirectional | |
| 40 | GND | ground | |
| 41 | SDA | bidirectional | |
| 42 | SCL | bidirectional | |
| 43 | TXD | bidirectional | |
| 44 | RXD | bidirectional | |
| 45 | GPIO4 | bidirectional | |
| 46 | EPD_BUSY | bidirectional | |
| 47 | BCLK | bidirectional | |
| 48 | EPD_RST | bidirectional | |
| 49 | EPD_DC | bidirectional | |
| 50 | GPIO23 | bidirectional | |
| 51 | GPIO24 | bidirectional | |
| 52 | GPIO25 | bidirectional | |
| 53 | MOSI | bidirectional | |
| 54 | MISO | bidirectional | |
| 55 | SCLK | bidirectional | |
| 56 | EPD_CS | bidirectional | |
| 57 | SPI_CE1 | bidirectional | |
| 58 | GPIO5 | bidirectional | |
| 59 | GPIO6 | bidirectional | |
| 60 | GPIO12 | bidirectional | |
| 61 | GPIO13 | bidirectional | |
| 62 | GPIO16 | bidirectional | |
| 63 | LRCLK | bidirectional | |
| 64 | GPIO20 | bidirectional | |
| 65 | DIN | bidirectional | |
| 66 | +5V | power | |
| 67 | +5V | power | |
| 68 | +5V | power | |
| 69 | +5V | power | |
| 70 | +5V | power | |
| 71 | 3.3V | power | |
| 72 | 3.3V | power | |
| 73 | 3.3V | power | |
| 74 | 3.3V | power | |
| 75 | 3.3V | power | |
| 76 | GND | ground | |
| 77 | GND | ground | |
| 78 | GND | ground | |
| 79 | GND | ground | |
| 80 | GND | ground | |
| 81 | VO+ | bidirectional | |
| 82 | VO- | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit E-Ink Bonnet for Raspberry Pi (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Where to buy
| Supplier | Stock | Price | Status | |
|---|---|---|---|---|
| Mouser | 1 | $14.95 (1+) | New at Mouser | View |
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
