ADA4634 · Adafruit
Adafruit product #4634 — built on LSM9DS1. Interfaces: I2C.
| Part number | ADA4634 |
|---|---|
| Manufacturer | Adafruit |
| Category | Sensors › IMU, Accelerometers & Gyros |
| Pins | 14 |
Adafruit 9-DOF LSM9DS1 Breakout Board - STEMMA QT / Qwiic pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | DEN_5V | bidirectional | |
| 2 | INT2_AG | bidirectional | |
| 3 | INT1_AG | bidirectional | |
| 4 | INT_M | bidirectional | |
| 5 | DRDY_M | bidirectional | |
| 6 | VCC | power | |
| 7 | 3.3V | power | |
| 8 | GND | ground | |
| 9 | SCL | bidirectional | |
| 10 | SDA | bidirectional | |
| 11 | CS_AG_5V | bidirectional | |
| 12 | CS_M_5V | bidirectional | |
| 13 | SDO_AG | bidirectional | |
| 14 | SDO_M | bidirectional |
Schematic symbol and footprint

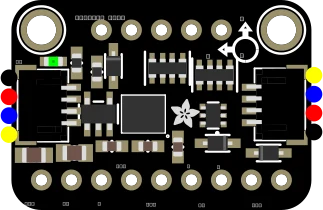

Footprint: Adafruit LSM9DS1 9-DoF Breakout - Stemma QT (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
