ADA5649 · AdafruitActive
Adafruit product #5649. Interfaces: I2C.
| Part number | ADA5649 |
|---|---|
| Manufacturer | Adafruit |
| Category | Interface & Expansion › Level Shifters |
| Pins | 10 |
| Voltage (max) | 5 V |
| Voltage (min) | 3 V |

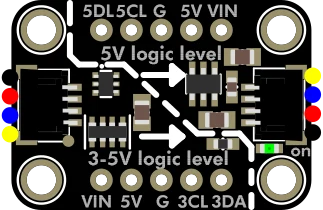

Adafruit QT 3V to 5V Level Booster Breakout - STEMMA QT / Qwiic pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | SDA_5V | bidirectional | |
| 2 | SCL_5V | bidirectional | |
| 3 | GND | ground | |
| 4 | 5.0V | bidirectional | |
| 5 | VCC | power | |
| 6 | VCC | power | |
| 7 | 5.0V | bidirectional | |
| 8 | GND | ground | |
| 9 | SCL_LV | bidirectional | |
| 10 | SDA_LV | bidirectional |
