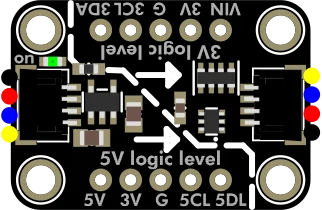

ADA5637 · AdafruitActive
Adafruit product #5637. Interfaces: I2C.
| Part number | ADA5637 |
|---|---|
| Manufacturer | Adafruit |
| Category | Interface & Expansion › Level Shifters |
| Pins | 10 |
| Voltage (max) | 5 V |
| Voltage (min) | 3 V |
Adafruit QT 5V to 3V Level Shifter Breakout - STEMMA QT / Qwiic pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | SDA_3V | bidirectional | |
| 2 | SCL_3V | bidirectional | |
| 3 | GND | ground | |
| 4 | 3.3V | power | |
| 5 | VCC | power | |
| 6 | VCC | power | |
| 7 | 3.3V | power | |
| 8 | GND | ground | |
| 9 | SCL | bidirectional | |
| 10 | SDA | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit QT 5V to 3V Shifter Breakout (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
