ADA1032 · AdafruitActive
Adafruit product #1032 — built on L3GD20H, L3GD20, L3G4200.
| Part number | ADA1032 |
|---|---|
| Manufacturer | Adafruit |
| Category | Sensors › IMU, Accelerometers & Gyros |
| Pins | 9 |
| Voltage (max) | 5 V |
| Voltage (min) | 3.3 V |
L3GD20H Triple-Axis Gyro Breakout Board - L3GD20/L3G4200 Upgrade pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | SCL/SPC | bidirectional | |
| 2 | SDA/SDI/SDO | bidirectional | |
| 3 | SDO/SAO | bidirectional | |
| 4 | CS | bidirectional | |
| 5 | DRDY/INT2 | bidirectional | |
| 6 | INT1 | bidirectional | |
| 7 | GND | ground | |
| 8 | +3V3 | power | |
| 9 | VIN | power |
Schematic symbol and footprint

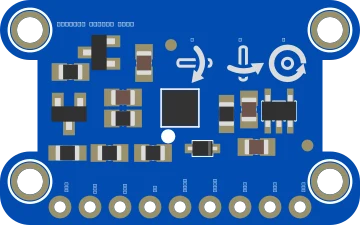

Footprint: L3GD20H Triple-Axis Gyro Breakout Board (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
