ADA2465 · Adafruit
Adafruit product #2465. Interfaces: USB.
| Part number | ADA2465 |
|---|---|
| Manufacturer | Adafruit |
| Category | Power › Battery Charging & Management |
| Pins | 14 |
| Voltage (max) | 5 V |
| Current | 1 A |

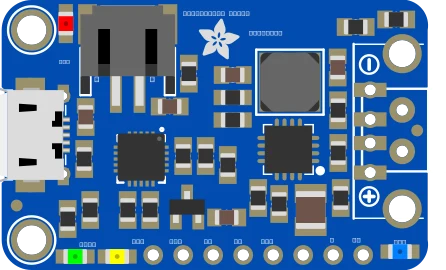

PowerBoost 1000 Charger - Rechargeable 5V Lipo USB Boost @ 1A pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | D+ | bidirectional | |
| 3 | GND | ground | |
| 4 | D- | bidirectional | |
| 5 | 5.0V | bidirectional | |
| 6 | 5.0V | bidirectional | |
| 7 | VBUS | power | |
| 8 | VLIPO | bidirectional | |
| 9 | VBAT | power | |
| 10 | ENABLE | bidirectional | |
| 11 | GND | ground | |
| 12 | LBO | bidirectional | |
| 13 | GND | ground | |
| 14 | 5.0V | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit PowerBoost 1000C (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
