PRT-14411 · SparkFunActive

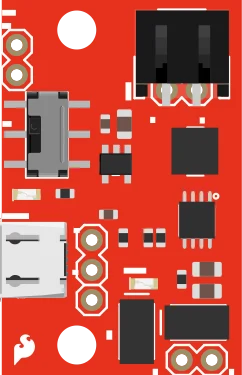

The economical SparkFun 5V/1A LiPo Charger/Booster uses the PAM2401, providing 1A at 5V from a LiPo battery with protection diodes for multi-cell setups and fast charging. (SparkFun PRT-14411)
| Part number | PRT-14411 |
|---|---|
| Manufacturer | SparkFun |
| Category | Power › Battery Charging & Management |
| Pins | 9 |
| Current | 1 A |
| Voltage (max) | 5 V |
SparkFun LiPo Charger/Booster - 5V/1A pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | 1 | bidirectional | |
| 2 | VBATT | bidirectional | |
| 3 | GND | ground | |
| 4 | 1 | bidirectional | |
| 5 | 5VIN | bidirectional | |
| 6 | GND | ground | |
| 7 | EN | bidirectional | |
| 8 | VCC | power | |
| 9 | GND | ground |
Schematic symbol and footprint
Footprint: SparkFun LiPo Charger Booster-5V1A (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
