PRT-15217 · SparkFunActive
The SparkFun LiPo Charger Plus is the suped-up power option in the SparkFun line of single-cell lithium polymer (LiPo) battery chargers. (SparkFun PRT-15217)
| Part number | PRT-15217 |
|---|---|
| Manufacturer | SparkFun |
| Category | Power › Battery Charging & Management |
| Pins | 6 |

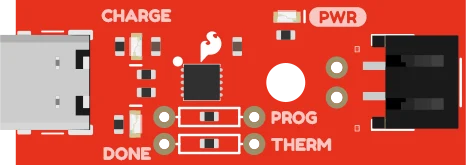

SparkFun LiPo Charger Plus pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | V_BATT | bidirectional | |
| 3 | GND | ground | |
| 4 | PROG | bidirectional | |
| 5 | GND | ground | |
| 6 | THERM | bidirectional |
Schematic symbol and footprint
Footprint: SparkFun LiPo Charger Plus (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
