PRT-14765 · SparkFunObsolete

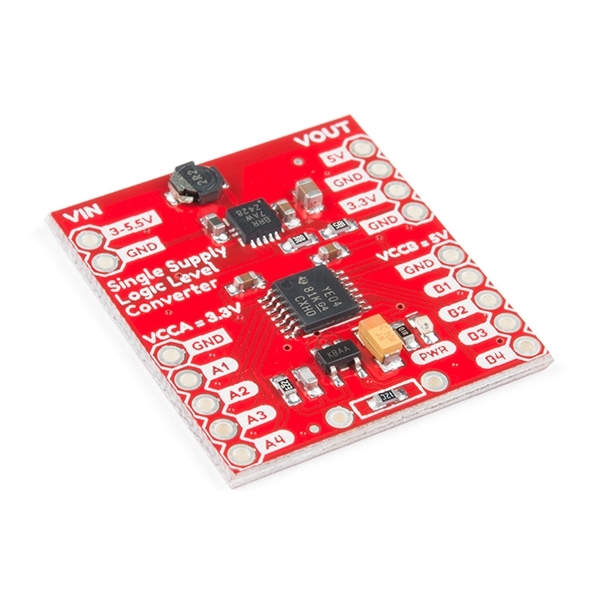

The SparkFun Single Supply Logic Level Converter is logic level and power supply translator in one small package. (SparkFun PRT-14765)
| Part number | PRT-14765 |
|---|---|
| Manufacturer | SparkFun |
| Category | Interface & Expansion › Level Shifters |
| Pins | 16 |

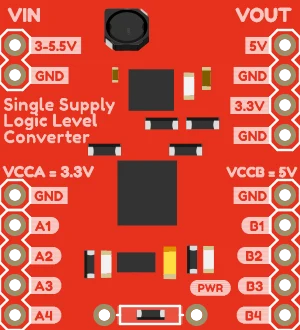

SparkFun Logic Level Converter - Single Supply pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | VIN32 | bidirectional | |
| 2 | 5V32 | bidirectional | |
| 3 | GND32 | bidirectional | |
| 4 | GND32 | bidirectional | |
| 5 | VCCA32 | bidirectional | |
| 6 | GND32 | bidirectional | |
| 7 | GND32 | bidirectional | |
| 8 | GND32 | bidirectional | |
| 9 | A132 | bidirectional | |
| 10 | B129 | bidirectional | |
| 11 | A129 | bidirectional | |
| 12 | B132 | bidirectional | |
| 13 | A131 | bidirectional | |
| 14 | B130 | bidirectional | |
| 15 | A130 | bidirectional | |
| 16 | B131 | bidirectional |
Schematic symbol and footprint
Footprint: Single_Supply_Logic_Level_Converter (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
