SEN-19921 · SparkFunActive

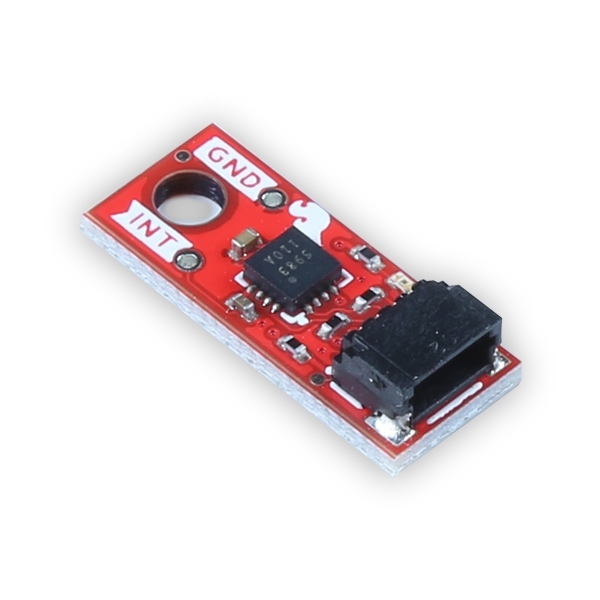

The SparkFun Qwiic Micro MMC5983MA Magnetometer is a micro-sized 0.75in. by 0.30in. sensor that utilizes a highly sensitive triple-axis magnetometer. (SparkFun SEN-19921)
| Part number | SEN-19921 |
|---|---|
| Manufacturer | SparkFun |
| Category | Sensors › IMU, Accelerometers & Gyros |
| Pins | 4 |
SparkFun Micro Magnetometer - MMC5983MA (Qwiic) pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | 3V3 | power | |
| 3 | SDA | bidirectional | |
| 4 | SCL | input |
Schematic symbol and footprint
Schematic symbol
Footprint: JST-SH 4-pin SMD right-angle (SM04B-SRSS-TB) - Qwiic / STEMMA QT — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
| Supplier | Stock | Price | Status | |
|---|---|---|---|---|
| DigiKey | 104 | $18.50 (1+) | Active | View |
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
