Name: Adafruit ADXL343 + ADT7410 Sensor FeatherWing
Brand: Adafruit

Parts › Sensors › Temperature

ADA4147 · AdafruitActive

Adafruit ADXL343 + ADT7410 Sensor FeatherWing photo

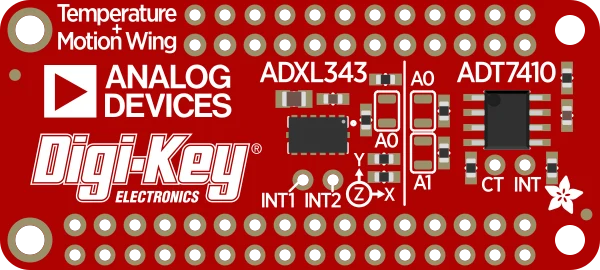

Adafruit ADXL343 + ADT7410 Sensor FeatherWing illustration

Adafruit product #4147 — built on ADXL343, ADT7410.

Part number	ADA4147
Manufacturer	Adafruit
Category	Sensors › Temperature
Pins	60

Adafruit ADXL343 + ADT7410 Sensor FeatherWing pinout

Pin	Name	Type
1	VBAT	power
2	27	bidirectional
3	USB	power
4	25	bidirectional
5	24	bidirectional
6	23	bidirectional
7	22	bidirectional
8	21	bidirectional
9	20	bidirectional
10	19	bidirectional
11	SCL	bidirectional
12	SDA	bidirectional
13	VBAT	power
14	2	bidirectional
15	USB	power
16	4	bidirectional
17	5	bidirectional
18	6	bidirectional
19	7	bidirectional
20	8	bidirectional
21	9	bidirectional
22	10	bidirectional
23	SCL	bidirectional
24	SDA	bidirectional
25	CT	bidirectional
26	INT	bidirectional
27	INT1	bidirectional
28	INT2	bidirectional
29	16	bidirectional
30	3.3V	power
31	14	bidirectional
32	GND	ground
33	12	bidirectional
34	11	bidirectional
35	10	bidirectional
36	N$19	bidirectional
37	N$18	bidirectional
38	N$17	bidirectional
39	N$16	bidirectional
40	N$15	bidirectional
41	N$14	bidirectional
42	N$13	bidirectional
43	N$12	bidirectional
44	N$11	bidirectional
45	1	bidirectional
46	3.3V	power
47	3	bidirectional
48	GND	ground
49	5	bidirectional
50	6	bidirectional
51	7	bidirectional
52	8	bidirectional
53	9	bidirectional
54	10	bidirectional
55	11	bidirectional
56	12	bidirectional
57	13	bidirectional
58	14	bidirectional
59	15	bidirectional
60	16	bidirectional

Schematic symbol and footprint

Footprint: Adafruit ADXL343 + ADT7410 Sensor FeatherWing (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
