ADA3422 · AdafruitActive
Adafruit product #3422.
| Part number | ADA3422 |
|---|---|
| Manufacturer | Adafruit |
| Category | Interface & Expansion › Breakouts & Adapters |
| Pins | 94 |

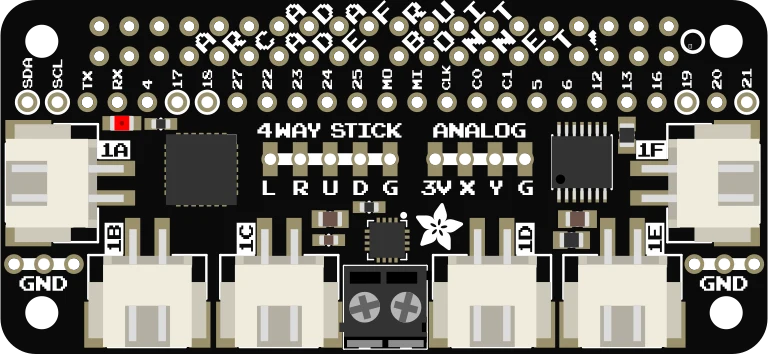

Adafruit Arcade Bonnet for Raspberry Pi with JST Connectors pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | +5V | power | |
| 2 | +5V | power | |
| 3 | GND | ground | |
| 4 | TXD | bidirectional | |
| 5 | RXD | bidirectional | |
| 6 | BCLK | bidirectional | |
| 7 | GND | ground | |
| 8 | GPIO23 | bidirectional | |
| 9 | GPIO24 | bidirectional | |
| 10 | GND | ground | |
| 11 | GPIO25 | bidirectional | |
| 12 | SPI_CE0 | bidirectional | |
| 13 | SPI_CE1 | bidirectional | |
| 14 | EECLK | bidirectional | |
| 15 | GND | ground | |
| 16 | GPIO12 | bidirectional | |
| 17 | GND | ground | |
| 18 | GPIO16 | bidirectional | |
| 19 | GPIO20 | bidirectional | |
| 20 | DIN | bidirectional | |
| 21 | 3.3V | power | |
| 22 | SDA | bidirectional | |
| 23 | SCL | bidirectional | |
| 24 | GPIO4 | bidirectional | |
| 25 | GND | ground | |
| 26 | GPIO17 | bidirectional | |
| 27 | GPIO27 | bidirectional | |
| 28 | GPIO22 | bidirectional | |
| 29 | 3.3V | power | |
| 30 | SPI_MOSI | bidirectional | |
| 31 | SPI_MISO | bidirectional | |
| 32 | SPI_SCLK | bidirectional | |
| 33 | GND | ground | |
| 34 | EEDATA | bidirectional | |
| 35 | GPIO5 | bidirectional | |
| 36 | GPIO6 | bidirectional | |
| 37 | GPIO13 | bidirectional | |
| 38 | LRCLK | bidirectional | |
| 39 | GPIO26 | bidirectional | |
| 40 | GND | ground | |
| 41 | SDA | bidirectional | |
| 42 | SCL | bidirectional | |
| 43 | TXD | bidirectional | |
| 44 | RXD | bidirectional | |
| 45 | GPIO4 | bidirectional | |
| 46 | GPIO17 | bidirectional | |
| 47 | BCLK | bidirectional | |
| 48 | GPIO27 | bidirectional | |
| 49 | GPIO22 | bidirectional | |
| 50 | GPIO23 | bidirectional | |
| 51 | GPIO24 | bidirectional | |
| 52 | GPIO25 | bidirectional | |
| 53 | SPI_MOSI | bidirectional | |
| 54 | SPI_MISO | bidirectional | |
| 55 | SPI_SCLK | bidirectional | |
| 56 | SPI_CE0 | bidirectional | |
| 57 | SPI_CE1 | bidirectional | |
| 58 | GPIO5 | bidirectional | |
| 59 | GPIO6 | bidirectional | |
| 60 | GPIO12 | bidirectional | |
| 61 | GPIO13 | bidirectional | |
| 62 | GPIO16 | bidirectional | |
| 63 | LRCLK | bidirectional | |
| 64 | GPIO20 | bidirectional | |
| 65 | DIN | bidirectional | |
| 66 | GND | ground | |
| 67 | J1_0 | bidirectional | |
| 68 | J1_1 | bidirectional | |
| 69 | J1_2 | bidirectional | |
| 70 | J1_3 | bidirectional | |
| 71 | GND | ground | |
| 72 | 3.3V | power | |
| 73 | XOUT | bidirectional | |
| 74 | YOUT | bidirectional | |
| 75 | GND | ground | |
| 76 | B1_5 | bidirectional | |
| 77 | B1_0 | bidirectional | |
| 78 | GND | ground | |
| 79 | GND | ground | |
| 80 | GND | ground | |
| 81 | GND | ground | |
| 82 | GND | ground | |
| 83 | GND | ground | |
| 84 | GND | ground | |
| 85 | VO+ | bidirectional | |
| 86 | VO- | bidirectional | |
| 87 | GND | ground | |
| 88 | B1_1 | bidirectional | |
| 89 | GND | ground | |
| 90 | B1_2 | bidirectional | |
| 91 | GND | ground | |
| 92 | B1_3 | bidirectional | |
| 93 | GND | ground | |
| 94 | B1_4 | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit Arcade Bonnet (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
