Name: Adafruit Floppy FeatherWing with 34-Pin IDC Connector
Brand: Adafruit

ADA5679 · AdafruitActive

Adafruit product #5679.

Part number	ADA5679
Manufacturer	Adafruit
Category	Interface & Expansion › Breakouts & Adapters
Pins	58

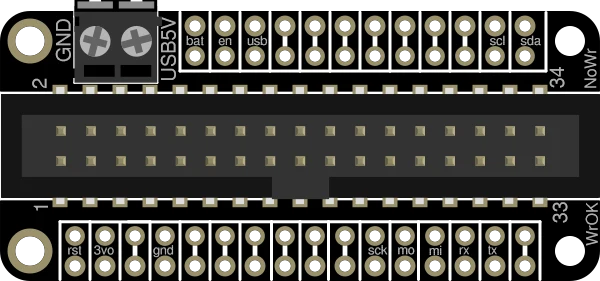

Adafruit Floppy FeatherWing with 34-Pin IDC Connector pinout

Pin	Name	Type
1	VBAT	power
2	EN	bidirectional
3	USB	power
4	WRDATA_3V	bidirectional
5	WRGATE_3V	bidirectional
6	WRPROT_3V	bidirectional
7	TRACK0_3V	bidirectional
8	RDDATA_3V	bidirectional
9	SIDE_3V	bidirectional
10	READY_3V	bidirectional
11	SCL	bidirectional
12	SDA	bidirectional
13	GND	ground
14	USB	power
15	VBAT	power
16	EN	bidirectional
17	USB	power
18	WRDATA_3V	bidirectional
19	WRGATE_3V	bidirectional
20	WRPROT_3V	bidirectional
21	TRACK0_3V	bidirectional
22	RDDATA_3V	bidirectional
23	SIDE_3V	bidirectional
24	READY_3V	bidirectional
25	SCL	bidirectional
26	SDA	bidirectional
27	RESET	bidirectional
28	3.3V	power
29	AREF	bidirectional
30	GND	ground
31	SELECT_3V	bidirectional
32	DENSITY_3V	bidirectional
33	MOTOR_3V	bidirectional
34	DIR_3V	bidirectional
35	STEP_3V	bidirectional
36	INDEX_3V	bidirectional
37	SCK	bidirectional
38	MOSI	bidirectional
39	MISO	bidirectional
40	RX	bidirectional
41	TX	bidirectional
42	G	bidirectional
43	RESET	bidirectional
44	3.3V	power
45	AREF	bidirectional
46	GND	ground
47	SELECT_3V	bidirectional
48	DENSITY_3V	bidirectional
49	MOTOR_3V	bidirectional
50	DIR_3V	bidirectional
51	STEP_3V	bidirectional
52	INDEX_3V	bidirectional
53	SCK	bidirectional
54	MOSI	bidirectional
55	MISO	bidirectional
56	RX	bidirectional
57	TX	bidirectional
58	G	bidirectional
