ADA6027 · AdafruitActive
Adafruit product #6027 — built on DS2482S-800. Interfaces: I2C.
| Part number | ADA6027 |
|---|---|
| Manufacturer | Adafruit |
| Category | Interface & Expansion › Breakouts & Adapters |
| Pins | 30 |
| Channels | 8 |

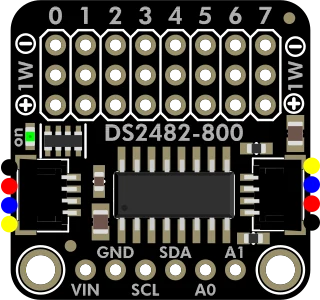

Adafruit DS2482S-800 8 Channel I2C to 1-Wire Bus Adapter pinout
| Pin | Name | Type | Description |
|---|---|---|---|
| 1 | GND | ground | |
| 2 | GND | ground | |
| 3 | GND | ground | |
| 4 | GND | ground | |
| 5 | GND | ground | |
| 6 | GND | ground | |
| 7 | GND | ground | |
| 8 | GND | ground | |
| 9 | OW0 | bidirectional | |
| 10 | OW1 | bidirectional | |
| 11 | OW2 | bidirectional | |
| 12 | OW3 | bidirectional | |
| 13 | OW4 | bidirectional | |
| 14 | OW5 | bidirectional | |
| 15 | OW6 | bidirectional | |
| 16 | OW7 | bidirectional | |
| 17 | VCC | power | |
| 18 | VCC | power | |
| 19 | VCC | power | |
| 20 | VCC | power | |
| 21 | VCC | power | |
| 22 | VCC | power | |
| 23 | VCC | power | |
| 24 | VCC | power | |
| 25 | VCC | power | |
| 26 | GND | ground | |
| 27 | SCL | bidirectional | |
| 28 | SDA | bidirectional | |
| 29 | A0 | bidirectional | |
| 30 | A1 | bidirectional |
Schematic symbol and footprint
Footprint: Adafruit DS2482S-800 8 Channel I2C to 1-Wire Bus Adapter (header pads) — to scale, pad 1 in yellow (mm). Check against the datasheet before ordering PCBs.
Datasheet
Where to buy
Stock and prices from the suppliers, checked 2026-10-08; excluding tax and shipping.
